5301 System Board

Bus Speed I Multiplier I Voltage Settings

To Clear CMOS, remove battery, wait 5 seconds, then re-insert.

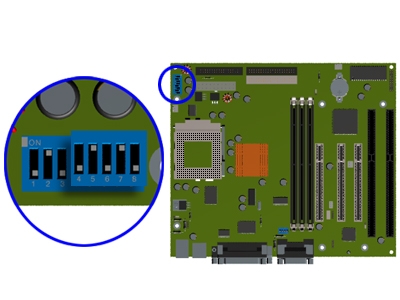

Front Side Bus CPU & SDRAM (switch 1)

CPU SDRAM PCI 1 2 3 4
66.8 66.8 33.4 O O O X
75 75 30 X O O X
83.3 83.3 33.3 O X O X
95 95 31.7 X X O X
100* 100 33.4 O O X X
* Default Configuration
Multiplier

SW2 1 2 3
X1.5 X X X
X2 O X X
X2.5* O O X
X3 X O X
X3.5 X X X
X4 O X O
X4.5 O O O
X5 X O O
X5.5 X X O
*Default Configuration
Voltage Switch Settings

SW2 4 5 6 7 8 Processor
1.3V X X X X O
1.4V X O X X O
1.5V X X O X O
1.6V X O O X O
1.7V X X X O O
1.8V X O X O O
1.9V X X O O O
2.0V X O O O O
2.1V O X X X X
2.2V X O X X X K6-2 /333/350/380/400
2.3V O O X X X
2.4V X X O X X K6-2 /450
2.5V O X O X X
2.6V X O O X X
2.7V O O O X X
2.8V X X X O X Pentium
2.9V O X X O X M II-366 (Default Setting)
3.0V X O X O X
3.1V O O X O X
3.2V X X O O X
3.3V O X O O X
3.4V X O O O X
3.5V O O O O X
