Document ID: MCGN-46BPBT

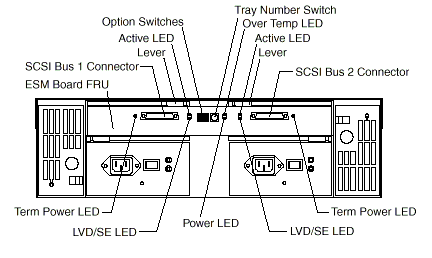

Netfinity EXP15 - ESM Board controls and indicators

Applicable to: World-Wide

Note SCSI Bus Connectors are 68-pin VHDCI connectors used for attaching SCSI cables.

ESM Board LED Indications:

LED	Description
Term Power (green)	LED is On if Term Power is present, indicating that the other end of the cable is connected to a power-on controller.
LVD/SE (green)	LED is On if the host bus is in LVD mode (default is LVD mode.)
Power (green)	LED is On when there is power to the ESM board.
Over Temp (amber)	This LED is On if the expansion unit overheats.
Active (green)	This LED flashes when there is activity on the external SCSI bus.
