Parts Information |
Document ID: MIGR-47KRG5 |
|
This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose. |
TP 570 - FRU parts listing
Applicable to: World-Wide
|
Index |

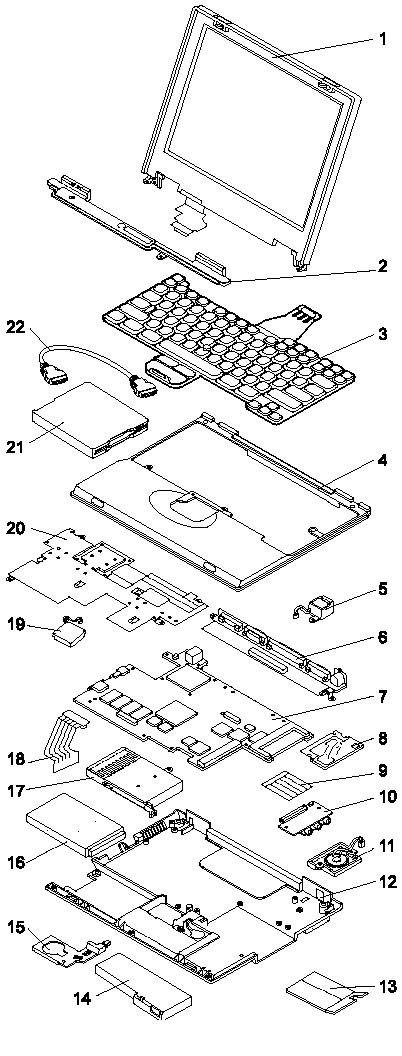

System unit |
|
|
1 |
LCD unit |
see see |
|
2 |
Center cover |
|
|
|
For 12.1-Inch |
05K6081 |
|
|
For 13.3-Inch |
05k6082 |
|
3 |
Keyboard |
see |
|
4 |
Keyboard bezel |
05K6070 |
|
5 |
Modem jack (RJ11) |
05K2834 |
|
|
Holder, modem jack |
05K6063 |
|
6 |
I/O connector cable |
05K2832 |
|
7 |
System board |
|
|
|
Mobile Pentium II 300 MHz |
10L1243 |
|
|
Mobile Pentium II 333 MHz |
10L1299 |
|
|
Mobile Pentium II 366 MHz |
10L1244 |
|
8 |
Modem card |
10L1246 |
|
9 |
Cable, audio card |
05K2833 |
|
10 |
Audio card |
10L1245 |
|
11 |
Speaker |
02K4870 |
|
12 |
Base cover |
05K6061 |
|
|
Korea |
10L1906 |
|
|
China |
10L1907 |
|
|
Taiwan |
10L1908 |
|
13 |
DIMM cover |
05K6071 |
|
14 |
Battery pack |
|
|
|
Panasonic |
02K6573 |
|
|
Sanyo |
02K6574 |
|
15 |
Backup battery |
02K6572 |
|
|
Holder, backup battery |
see system misc. parts |
|
16 |
Hard disk drive |
|
|
|
Hard disk drive (4.0 GB) |
22L0018 |
|
|
Hard disk drive (6.4 GB) |
22L0019 |
|
17 |
PC Card slots |
05K6068 |
|
18 |
HDD cable |
05K2837 |
|
|
Holder, HDD cable |
05K6069 |
|
|
Cover, hard disk drive |
05K6072 |
|
19 |
Fan |
05K6065 |
|
20 |
Upper shield |
05K6064 |
|
21 |
Diskette drive |
|
|
|
TEAC |
05K8989 |
|
|
SONY |
05K8990 |
|
22 |
Cable, diskette drive |
05K2844 |
|
|
|
|
|
|
|
|
|
|
Screw kitIncluding nylon-coated screws:M2 x 4 mm, pan head (5) |
05K6083 |
|
|
|
|
|
|
System miscellaneous parts:Power switch knobHolder, backup battery |
05K6066 |
|
|
|
|
|
|
HDD Screw Kit |
05K6073 |
For a listing of common option, tools, or power cord FRU numbers, click here (
).
|
