Parts Information

Document ID: AGRN-46ZUFF

TP 760L/LD - 10.4 VGA LCD FRU parts listing

Applicable to: World-Wide

ThinkPad 760L/LD 10.4 VGA LCD FRU parts list for PN 46H5355

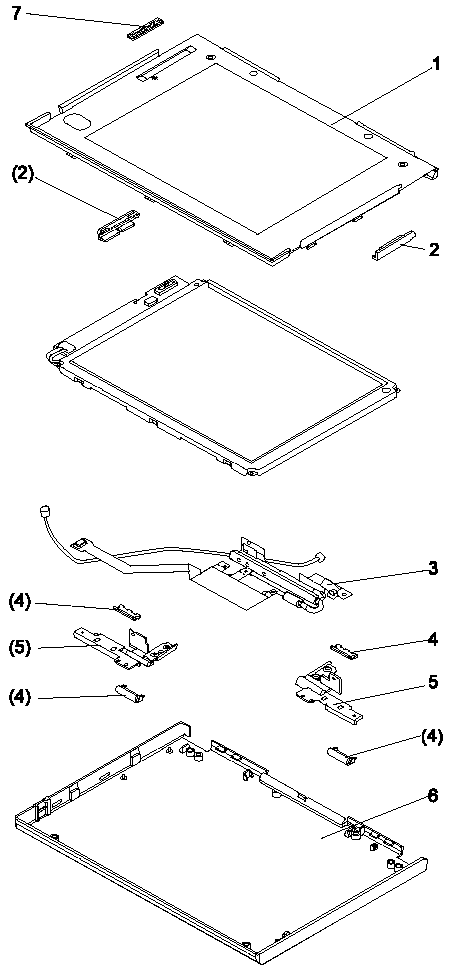

LCD Unit, 10.4 VGA (P/N 46H5355)

LCD Cover Group	46H5712
Note Includes the following parts: 1 Front Cover 2 Guide (R/L) 4 Hinge Cover (R/L) 6 Rear Cover 7 Slide Knob - Screw Cap - Screw - Tape

Hinge Group	46H5715
Note Includes the following parts: 5 Hinge (R/L) - Screw Cap

Interface Cable Group	46H5720
Note Includes the following parts: 3 Interface Cable Assembly - Screw Cap

	Search Keywords
	Document Category	Hardware Maintenance Information
	Date Created	17-04-99
	Last Updated	19-05-99
	Revision Date
	Brand	IBM ThinkPad
	Product Family	ThinkPad 760L/LD
	Machine Type	9547
	Model	various
