Service Hints & Tips |
Document ID: LWIK-3NHMU3 |
|
This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose. |
TP 760 - LCD/Keyboard etc Related Symptoms
Applicable to: World-Wide
Note : Please Ignore ALL references to page numbers.

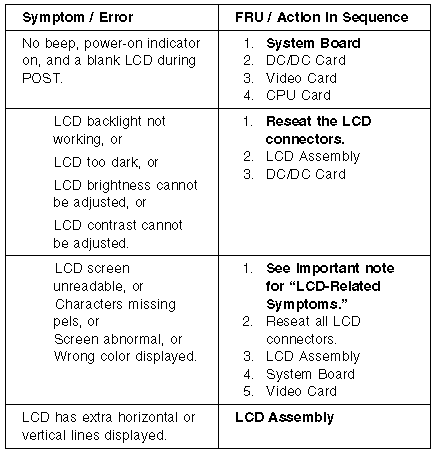

LCD-Related Symptoms :
Important
The LCD for the notebook computer contains over 921 000 thin-film transistors (TFTs). A small number of missing, discolored, or lighted dots (on all the time) is characteristic of TFT LCD technology, but excessive pixel problems can cause viewing concerns. Replace the LCD if the number of missing, discolored, or lighted dots in any background is 21 or more.

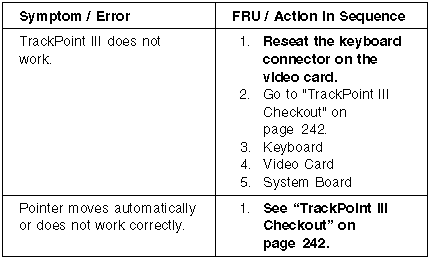

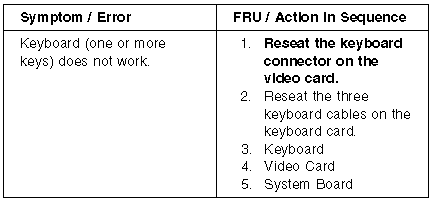

Keyboard/TrackPoint III Related Symptoms :

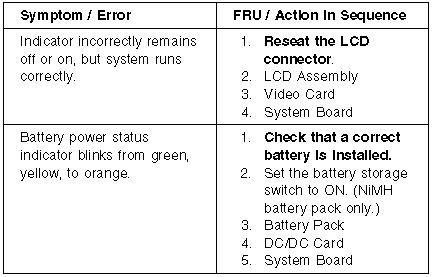

Indicator Related Symptoms :

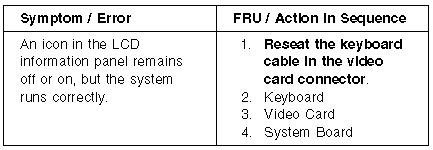

LCD Information Panel-Related Symptoms :

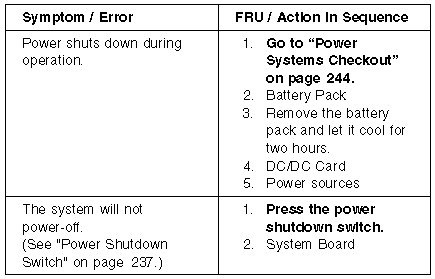

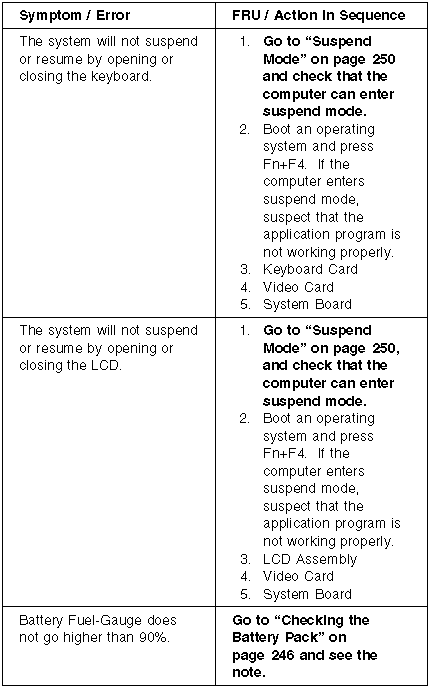

Power Related Symptoms :
Function/Audio Related Symptoms :

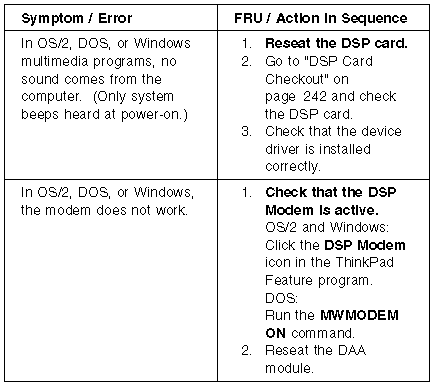

DSP-Related Symptoms :

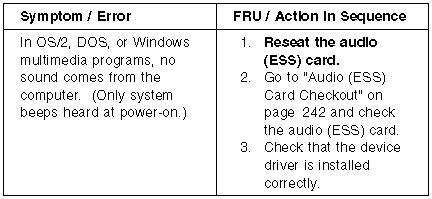

ESS-Related Symptoms :

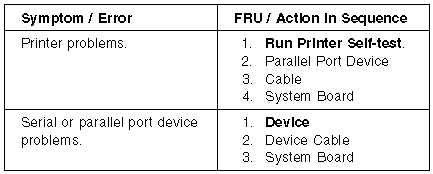

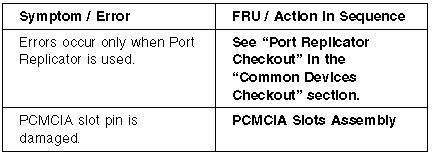

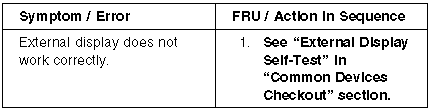

Peripheral-Device Related Symptoms :

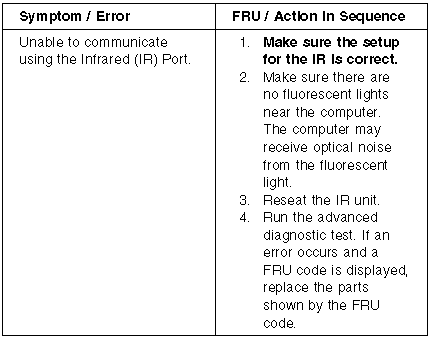

Infrared Related Symptoms :

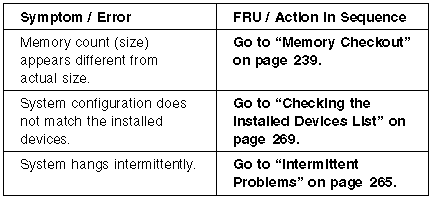

Other Symptoms :
Note :
If you cannot find a symptom or error in this list and the problem remains, see "Undetermined Problems".
|
