Service Hints & Tips |
Document ID: DDSE-3QNJ6E |
PCServer704 - Intrusion Alarm Diagram
Applicable to: World-Wide

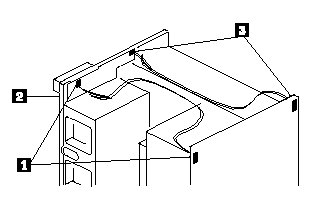

Intrusion Alarm Switch and Cable
Note
Cables are on the front-facing side of the front panel control board.
1. Connector J5 on the front panel control board; switch located at the back near the power supply.
2. Connector J2 on the front panel control board; switch located at the back above the board cage area.
3. EMI door switch location (not shown); direct contact no cable.
|
