PCServer704 - Processor Assembly Diagram
Applicable to: World-Wide

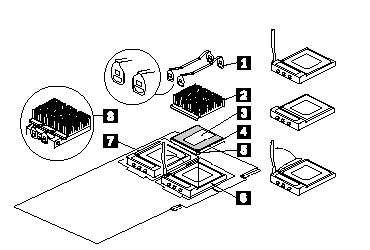

Processor Assembly
1. Heat sink retention clips
2. Heat sink
3. Thermal grease
4. Processor
5. Pin 1 location
6. Lower processor socket with lever in open position
7. Upper processor socket with lever in closed/locked position
8. Complete assembly
|
