Parts Information |
Document ID: LWIK-42AU4N |
TP SelectaDock III - FRU parts list
Applicable to: World-Wide

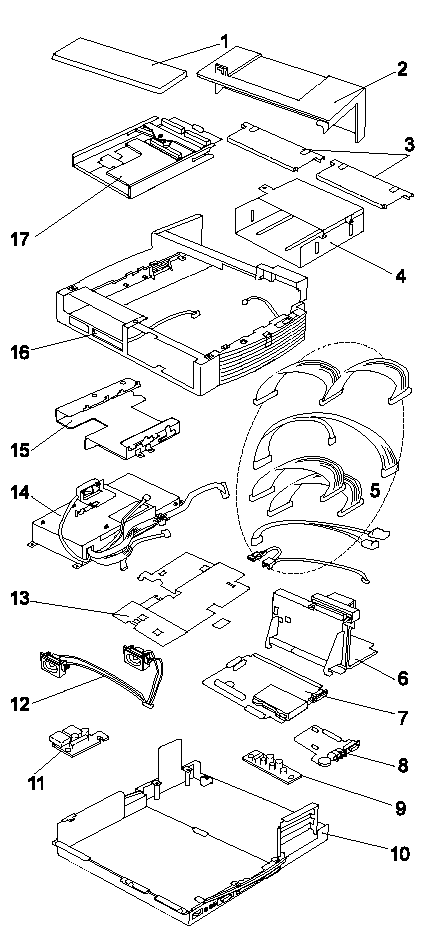

FRU parts listing for SelectaDock III (3547-003)
|
1 |
Connector cover |
73H7450 |
|
2 |
Rear cover |
12J2493 |
|
3 |
Bezel (Upper cover group) | |
|
4 |
Device space bay frame |
82H6729 |
|
5 |
Cables (Cable group) | |
|
6 |
Riser card |
11J8831 |
|
7 |
Main card (Main card assembly) | |
|
8 |
Audio card |
12J2494 |
|
9 |
DC-DC card |
12J2495 |
|
10 |
Base cover |
11J8828 |
|
11 |
USB card |
12J2496 |
|
12 |
Speaker assembly |
39H7446 |
|
13 |
Shield cover (Main card assembly) | |
|
14 |
Power supply (Power supply group) | |
|
15 |
Bracket (Power supply group) | |
|
16 |
Upper cover (Upper cover group) | |
|
17 |
UltraBay II tray |
11J8834 |
|
Cable group |
11J8833 |
|
Upper cover group |
11J8829 |
|
Power supply group |
11J8827 |
|
Main card assembly |
11J8832 |
|
Miscellaneous kit |
39H7447 |
Options
|
SelectaDock Base Model I |
39H7416 |
|
SelectaBase 770 |
11J8822 |
|
SelectaBase PC Card Enabler |
11J8823 |

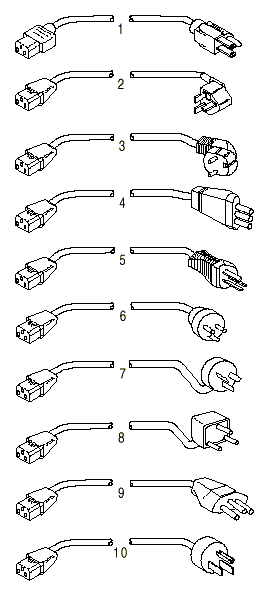

Power Cords
Warning:
Use the power cord certified for your country.
|
1 |
Colombia, U.S., Venezuela |
13F9959 |
|
|
Japan, 2-pin |
6454377 |
|
|
Japan, 3-pin |
65F0031 |
|
2 |
Hong Kong, Singapore, U.K. |
14F0033 |
|
3 |
France, Germany, Spain |
13F9979 |
|
4 |
Italy |
14F0069 |
|
5 |
Australia, New Zealand |
13F9940 |
|
6 |
Denmark |
13F9997 |
|
7 |
Israel |
14F0087 |
|
8 |
Bangladesh, Pakistan, Sri Lanka, South Africa |
14F0015 |
|
9 |
Switzerland |
14F0051 |
|
10 |
Thailand |
1838574 |
|
