Parts Information |
Document ID: LWIK-44GTDA |

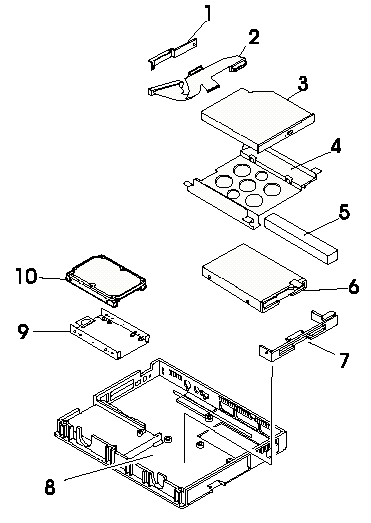

TP 380Z - CD-ROM/Diskette FRU drive assembly
Applicable to: World-Wide
|
Index |
Description |
FRU # |
|
1 |
Connector Bracket (included in Index 4. CD/Diskette Drive Bracket) | |
|
2 |
CD/Diskette Drive Connector Assembly |
05K2767 |
|
3 |
CD-ROM (10X - 24X) |
05K9057 |
|
4 |
CD/Diskette Drive Bracket Kit includes: |
05K4751 |
|
Connector Bracket (Index 1) | ||
|
Connector Bracket (Index 1) | ||
|
Absorber (Index 5) | ||
|
5 |
Absorber (included in Index 4 CD/Diskette Drive Bracket) | |
|
6 |
Diskette Drive |
11J8338 |
|
7 |
Diskette Drive Bezel |
73H9932 |
|
8 |
Base Cover Assembly |
05K5697 |
|
9 |
HDD Bracket |
05K4752 |
|
10 |
Hard Disk Drive Assembly | |
|
4.0GB HDD Assembly (9.5 mm) |
22L0024 | |
|
with Spacer | ||
|
4.0GB HDD Assembly (12.5 mm) |
83H7085 | |
|
(See page 48 in the HMM for the relationship between the HDD and the spacer.) |
|
Search Keywords |
| |
|
Document Category |
Service Parts | |
|
Date Created |
25-01-99 | |
|
Last Updated |
25-01-99 | |
|
Revision Date |
| |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 380Z | |
|
Machine Type |
2635, 2636 | |
|
Model |
Various | |
|
