Parts Information

Document ID: GSMH-3DBH25

TP Dock II - Parts Listing

Applicable to: World-Wide

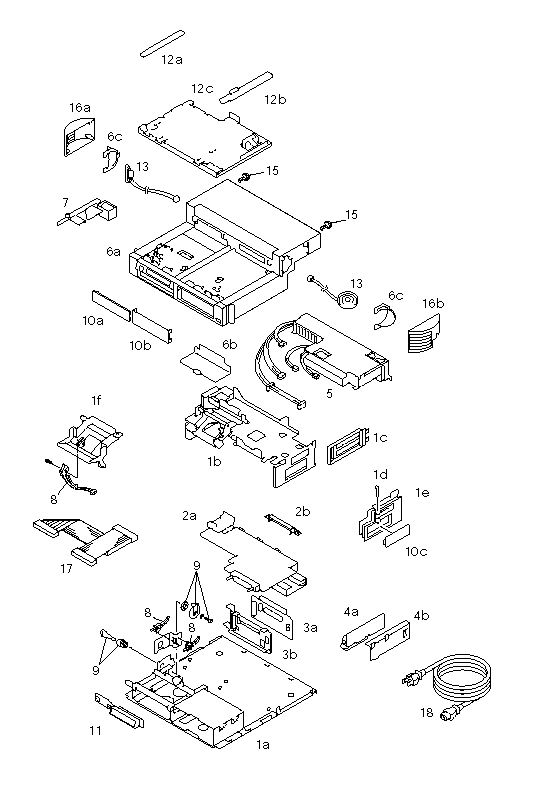

Parts Listing:

Parts:

1	Bottom Cover Assembly a. Bottom Cover Subassembly b. Main Chassis Assembly c. Bracket AT d. PCMCIA Security Bar e. Side Panel f. Cover 160P-L	84G3613
2	Main Card Assembly a. Main Card Subassembly b. Shield Upper	84G3614
3	Riser Card Assembly a. Riser Card b. Bracket	84G3615
4	Audio Card Assembly a. Audio Card b. Bracket	84G3616
5	Power Supply Unit	84G3618
6	Main Cabinet Group a. Main Cabinet b. Cover 160-Pin c. Bracket Speaker-Left/Right	84G3619
7	Solenoid Assembly	84G3620
8	Micro Switch Group	84G3621
9	Keylock Assembly (w/keys)	84G3622
10	Blank Cover Group a. Blank Bezel for 1 Inch Height b. Blank Bezel for Half Height c. Blank Cover for AT Card	84G3623
11	LCD Circuit Board Group	84G3626
12	Tray Unit Group a. Tray Guide-Left b. Tray Guide-Right c. Tray Assembly	84G3627
13	Speaker Group (w/cables)	84G3628
14	Cable Group - Connection Cable 1 (Main-LCD) - Connection Cable 1 (Aud./Aud./Riser-Interposer) - Connection Cable 2 (Aud.-Main) - Connection Cable 3 (Aud.-CD ROM) - Connection Cable 4 (Aud.-Audio) Connection - Cable 5 (Aud.-Main) - Connection Cable 6 (Aud.-Main)	84G3629
15	Misc. Kit (Screws and Clamps)	84G3630
16	Speaker Cover Group a. Speaker Cover Left b. Speaker Cover Right	84G3633
17	SCSI Device Cable	84G5253
17	IDE Device Cable	66G3576
18	Power Cord.

Options:

Tape Drive Kit	84G1290
Bracket and Bezel	84G1291
Shelf	84G3631
Tray Cover	84G3632

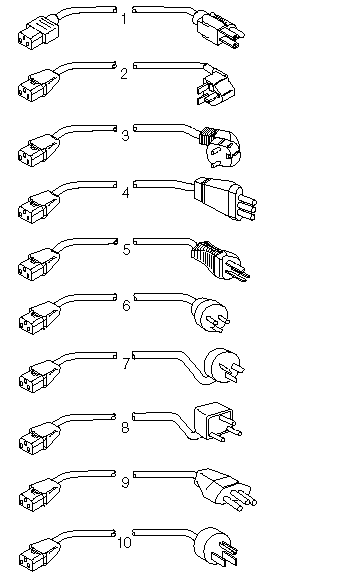

Power Cords:

Index:
Note:
Use the power cord certified for your country.

1	Colombia, U.S., Venezuela	13F9959
	Japan, 3-pin	65F0031
2	Hong Kong, Singapore, U.K.	14F0033
3	France, Germany, Spain	13F9979
4	Italy	14F0069
5	Australia, New Zealand	13F9940
6	Denmark	13F9997
7	Israel	14F0087
8	Bangladesh, Pakistan, Sri Lanka, South Africa	14F0015
9	Switzerland	14F0051
10	Thailand	1838574

Special Tools:
The following special tools are required to service the Dock II.

Volt-Ohm Meter:
A meter similar to the Triplet Model 3101.

Screwdriver Kit:
Use small screwdrivers (IBM part 95F3598) when removing and replacing FRUs.

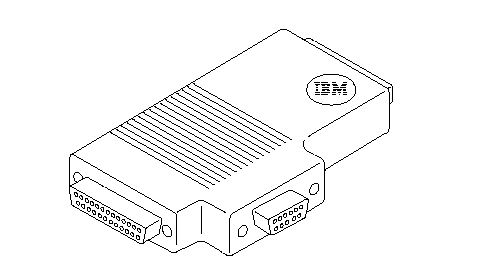

Wrap Plug:
The tri-connector wrap plug (IBM part 72X8546) is used during advanced diagnostic tests of:
Serial Connectors
Parallel Connectors

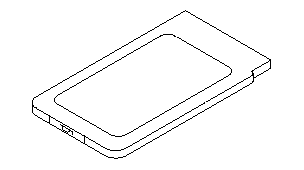

PC Test Card:
The PC test card (IBM part 35G4680) is used during advanced diagnostic tests of the PCMCIA slots.

Note:
1 Manufactured by Triplett Corporation, Bluffton, Ohio 45817, U.S.A.
