Parts Information

Document ID: GSMH-3EFH67

PC Server 330 - Processor Board

Applicable to: World-Wide

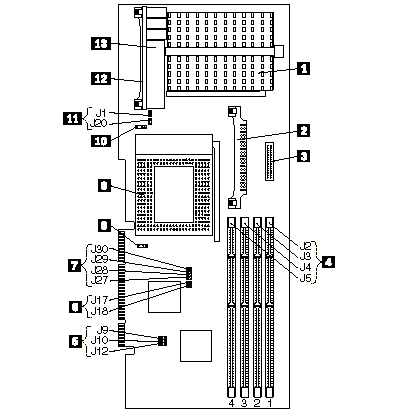

Processor Board:

1	Primary Microprocessor Connector
2	Secondary Voltage Regulator Connector
3	Reserved
4	Memory Connectors (J2, J3, J4, J5)
5	Reserved (J9, J10, J12)
6	PMC Frequency Selection Jumpers (J17, J18)
7	Clock Ratio Jumpers (J27, J28, J29, J30)
8	Secondary Microprocessor Fan Connector (J21)
9	Secondary Microprocessor Connector
10	Primary Microprocessor Fan Connector (J22)
11	Clock Frequency Jumpers (J1, J20)
12	Primary Voltage Regulator Module Connector
13	Voltage Regulator Module

Processor Board Jumpers:

Attention: If the microprocessor bus-to-core ratio is incorrect, system board components will overheat and component damage can occur. Be sure that the microprocessor bus-to-core ratio jumper is properly set. When you install a microprocessor, check the jumper settings carefully. Make sure that the setting for the clock speed jumper matches the clock speed of the microprocessor that you installed.

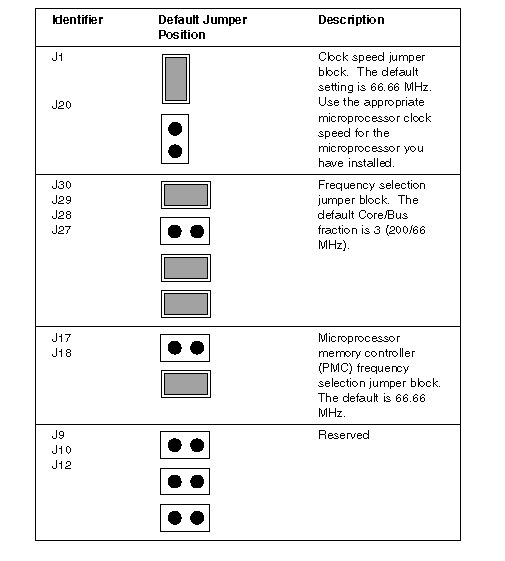

Operating Parameters Jumpers:

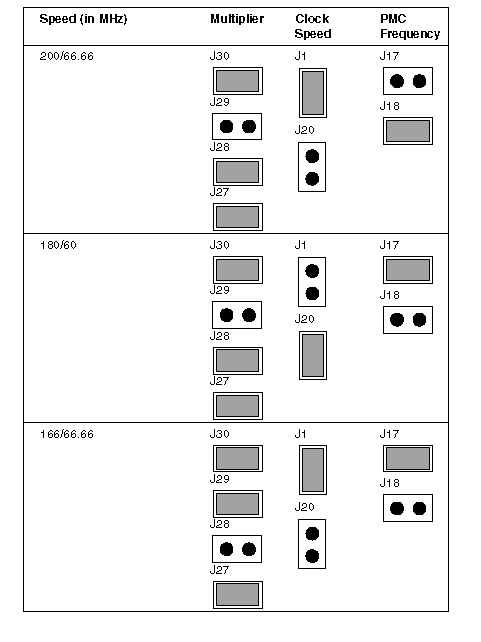

Frequency Jumpers:
