Parts Information |
Document ID: GSMH-3D4FL9 |
TP 510 - Parts Listing
Applicable to: World-Wide
Parts Listing:
Parts Listing (continued):

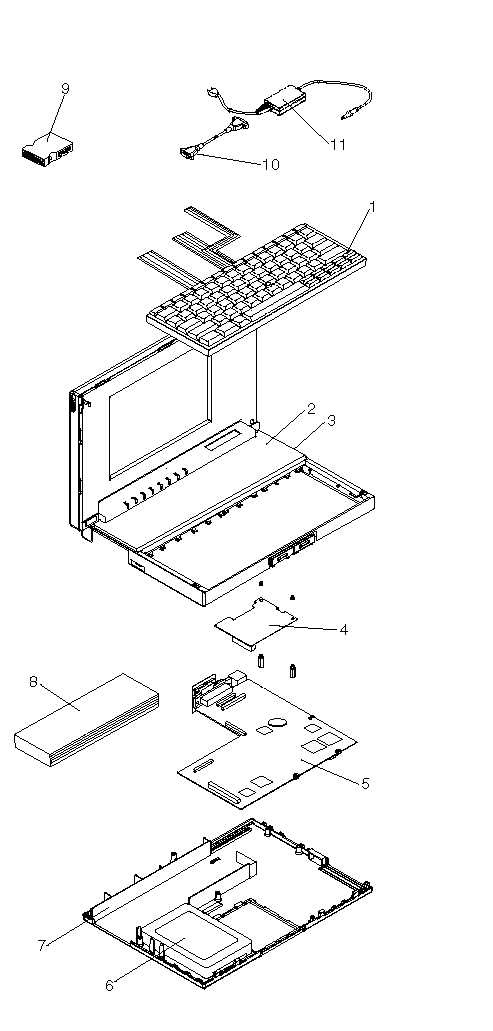

ThinkPad 510 System Unit FRUs:
|
1 |
Keyboard Assembly (US English) |
73G3394 |
|
TrackPoint II Cap Set |
73G3463 | |
|
2 |
Color LCD Assembly |
73G3387 |
|
3 |

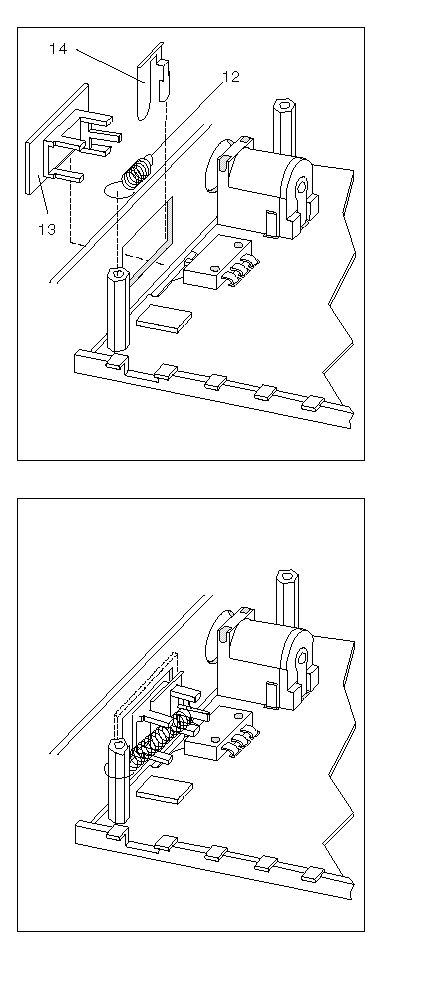

Power Switch Assembly (See Index numbers 12, 13 and 14.) | |
|
4 |
Power Card |
73G3465 |
|
5 |
System Board |
88G1121 |
|
System Board Bracket |
73G3391 | |
|
6 |
200MB Hard Disk |
73G3443 |
|
7 |
Base Cover Assembly |
73G3395 |
|
Connector Door |
73G3420 | |
|
8 |
Rechargeable Battery |
73G3417 |
|
9 |
ThinkPad MultiPort |
73G3388 |
|
10 |
Diskette Drive Cable (External) |
73G3422 |
|
Parallel Port Cable (Internal) |
73G3421 | |
|
Hard Disk Cable (Internal) |
59G7927 | |
|
11 |
AC Adapter |
73G3411 |
|
12 |
Power Switch Spring |
73G3449 |
|
13 |
Power Switch Slide |
73G3385 |
|
14 |
Power Switch Clip |
73G3448 |
|
4MB IC DRAM |
8189098 | |
|
8MB IC DRAM |
8189099 | |
|
16MB IC DRAM |
19H8061 | |
|
External Diskette Drive |
59G7918 | |
|
Screw Pack 1 mouse/hard disk drive screw 1 system board insert screw |
73G3445 |
|
