Notebook CL57SX Parts Listing
Applicable to: World-Wide

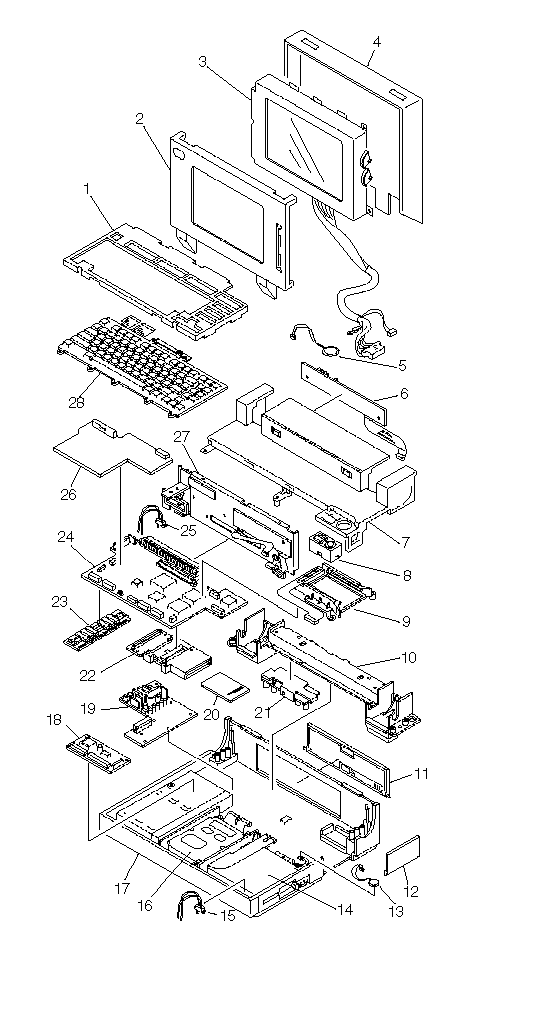

Parts Listing:
System Unit:
|
Index | ||
|
1 |
Frame, Keyboard |
07G1393 |
|
2 |
Bezel, LCD |
07G1391 |
|
3 |
LCD Panel |
48G9999 |
|
4 |
Cover, LCD Rear |
07G1392 |
|
Cable, LCD |
07G1384 | |
|
5 |
Speaker |
07G1229 |
|
6 |
Indicator Card |
07G1375 |
|
Support, Indicator Card |
07G1398 | |
|
7 |
Top Cover |
07G1390 |
|
8 |
Trackball Assembly |
1397752 |
|
9 |
Guide, Modem |
07G1378 |
|
Bracket, Modem |
07G1408 | |
|
10 |
Hinge, Support |
07G1407 |
|
Hinge, Left |
07G1403 | |
|
Hinge, Right |
07G1404 | |
|
11 |
Cover, I/O Connectors |
07G1394 |
|
12 |
Cover, Option Slot |
07G1395 |
|
Cover, Math Coprocessor |
07G1429 | |
|
13 |
Backup Battery, Lithium |
35G2282 |
|
14 |
Diskette Drive Assembly |
72X6074 |
|
Bracket, Diskette Drive |
07G1405 | |
|
Cable, Diskette Drive |
07G1379 | |
|
15 |
Lid Switch |
07G1386 |
|
16 |
Hard Disk Drive, 80MB |
95F4708 |
|
Bracket, Hard Disk Drive |
07G1406 | |
|
Cable, Hard Disk Drive |
07G1380 | |
|
17 |
Bottom Cover |
07G1389 |
|
18 |
Keyboard Control Card |
1397751 |
|
19 |
Voltage Converter |
07G1373 |
|
20 |
2MB IC DRAM Card |
07G1414 |
|
4MB IC DRAM Card |
07G1415 | |
|
8MB IC DRAM Card |
07G1416 | |
|
21 |
Regulator |
06G9536 |
|
22 |
Connector, IC DRAM Card |
07G1377 |
|
23 |
Memory Module Kit, System Board |
07G1879 |
|
24 |
System Board Note : |
07G1371 |
|
System Board Dew Sensor |
35G2319 | |
|
25 |
Switch, Communications Cartridge |
07G1385 |
|
26 |
Display Control Card |
07G1372 |
|
27 |
I/O Panel Assembly |
07G1374 |
|
Bracket, Connector (includes slide and connector screws) |
07G1402 | |
|
Serial Connector Assembly |
07G1426 | |
|
28 |
Keyboard | |
|
Battery Pack, Rechargeable, HHR140A |
07G1413 | |
|
For Benelux |
06G8433 | |
|
For Nordic countries |
06G8434 | |
|
For Switzerland |
06G8432 | |
|
Battery Pack, Rechargeable, HHR150A |
06G9259 | |
|
For Switzerland |
06G9264 | |
|
Holder, Battery Pack |
07G1376 | |
|
Sensor, Thermal |
07G1387 | |
|
Slide, Brightness/Contrast |
07G1399 | |
|
Slide, Power Switch |
07G1400 | |
|
Slide, Volume Control |
07G1401 | |
|
Foot, Left |
07G1396 | |
|
Foot, Right |
07G1397 | |
|
Cable, 50-Pin |
07G1382 | |
|
Cable, 4-Pin |
07G1383 | |
|
Communications Adapters: | ||
|
Serial Adapter |
79F6840 | |
|
Data/Fax Modem Adapter |
53G7772 | |
|
High-Speed Data/Fax Modem |
92F0288 | |
|
Telephone Cable |
94X1540 | |
|
Miscellaneous Kit |
07G1409 | |
|
Miscellaneous Kit, LCD |
07G1410 | |
|
Screw Kit |
07G1411 |
Options and Adapters:
|
AC Adapter, CVCC, World Trade |
06G8457 |
|
for Japan |
06G8462 |
|
for U.S./Canada |
06G8452 |
|
AC Adapter, CT | |
|
for Japan |
35G2285 |
|
for U.S./Canada |
07G1412 |
|
Communications Cartridge |
07G3999 |
|
External Battery Pack |
34G9869 |
|
Battery Pack Cable (for 34G9869) |
34G9870 |
|
FaxConcentrator Adapter/A |
94X2540 |
|
FaxConcentrator Adapter/A Cable |
94X2527 |
|
Miniature Mouse |
95F5723 |
|
Strap |
07G1449 |
|
Trackball Cable |
07G1381 |
Keyboards:
|
French |
1397927 |
|
German |
1397926 |
|
Italian |
1397928 |
|
Japanese |
1398299 |
|
Spanish |
1397929 |
|
U.K. English |
1397925 |
|
U.S. English |
1397750 |
|
Cable, Keyboard |
07G1381 |
Numeric Keypad:
|
French |
95F6313 |
|
German |
95F6314 |
|
Italian |
95F6316 |
|
Spanish |
95F6315 |
|
U.K. English |
95F5741 |
|
U.S. English |
95F5741 |
|
