Parts Information

Document ID: DDSE-3UMNFU

PC Server 315 - System Parts Listing

Applicable to: World-Wide

NOTE:
Models PJ0, PS0, PSV, KJ0, and KS0 contain the following FRUs at the time of shipping unless indicated. However, other FRUs are supported in each model as options.

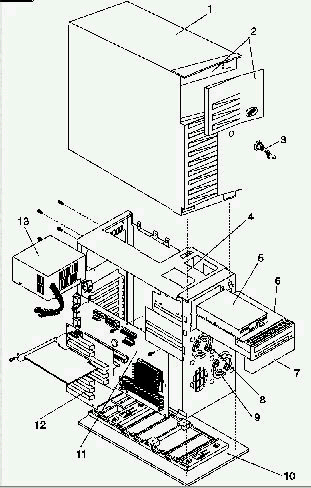

INDEX	SYSTEM (PC SERVER 315 - TYPE 8638)	FRU NO.
1	Top Cover (Models PJ0, PS0, PSV, KJ0, KS0)	60H8359
2	Front Bezel (Models PJ0, PS0, PSV, KJ0, KS0)	60H8385
3	Keylock with Keys (Models PJ0, PS0, PSV, KJ0, KS0)	33F8433
4	Base Frame (Models PJ0, PS0, PSV, KJ0, KS0)	60H8358
5	1.44MB Diskette Drive (Models PJ0, PS0, PSV, KJ0, KS0)	93F2361
6	8X CD-ROM Drive MKE CR-504 (Models PJ0, PS0, PSV, KJ0, KS0)	73H2601
7	5.25-Inch Blank Bezel (Models PJ0, PS0, PSV, KJ0, KS0)	42H0345
8	80mm Fan Assembly (Models PJ0, PS0, PSV, KJ0, KS0)	06H1796
9	92mm Fan Assembly (Models PJ0, PS0, PSV, KJ0, KS0)	60H9749
10	Pedestal (Models PJ0, PS0, PSV, KJ0, KS0)	60H9731
11	System Board without Memory and Processor (Models PJ0, PS0, PSV, KJ0, KS0)	93H4873
12	I/O Riser Card (Models PJ0, PS0, PSV, KJ0, KS0)	60H6989
13	250 Watt 3.3 Volt Power Supply Assembly (Models PJ0, PS0, PSV)	40H7563
	250 Watt 3.3 Volt PFC Power Supply Assembly (Models KJ0, KS0)	40H7566
	32 MB ECC Memory DIMM (Models PJ0, PS0, PSV, KJ0, KS0)	42H2801
	64 MB ECC Memory DIMM (Models PJ0, PS0, PSV, KJ0, KS0)	42H2802
	128 MB ECC Memory DIMM (Models PJ0, PS0, PSV, KJ0, KS0)	42H2803
	100 MB Ethernet Adapter (Models PSV)	25H4383
	2 GB Hard Disk Drive (Models PSV)	07H1132
	4 GB Fast/Narrow Hard Disk Drive	76H4615
	Battery (Models PJ0, PS0, PSV, KJ0, KS0)	33F8354 CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer's instructions. Do not disassemble it, recharge it, throw it into fire or water, or short-circuit it. Dispose of the battery as required by local ordinances or regulations.
	DASD Tray Assembly (Models PJ0, PS0, PSV, KJ0, KS0)	60H8355
	EMC Shield (Models PJ0, PS0, PSV, KJ0, KS0)	06H1782
	Keyboard with Cable (Models PJ0, PS0, PSV, KJ0, KS0)	See "Keyboards (101/102 Key)"
	Miscellaneous Mounting Screws and Riser Card Clip (Models PJ0, PS0, PSV, KJ0, KS0)	60H9754
	Mouse (Models PJ0, PS0, PSV, KJ0, KS0)	06H4595
	P6 180MHz Processor Chip with Heat Sink (Models PJ0, KJ0)	75H9215
	P6 200MHz Processor Chip with Heat Sink (Models PS0, PSV, KS0)	75H9212
	Power Cord (Models PJ0, PS0, PSV, KJ0,KS0)	See "Power Cords"
	Power Switch with Cable (Models PJ0, PS0, PSV, KJ0, KS0)	60H9334
	S3 Trio Video Adapter (Models PJ0, PS0, PSV, KJ0, KS0)	60H8386 new FRU 61H0081
	SCSI Ultra-Wide Adaptec Card (Models PJ0, PS0, PSV, KJ0, KS0)	12J3094

	Search Keywords
	Document Category	Service Parts
	Date Created	19-05-98
	Last Updated	23-03-99
	Revision Date	23-03-2000
	Brand	IBM PC Server
	Product Family	PC Server 315
	Machine Type	8638
	Model	KJ0; KS0; PJ0; PS0; PSV
