Service Hints & Tips |
Document ID: LWIK-3Y8GUQ |

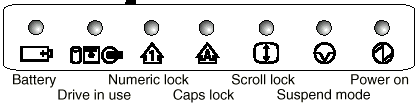

TP 380Z - System status indicators
Applicable to: World-Wide
|
Battery |
Green |
Enough battery power remains for operation |
|
Orange |
The battery pack is being charged | |
|
Blinking orange |
The battery pack needs to be charged | |
|
Drive in use |
Orange |
Data is being read from or written to the hard disk, the diskette drive, or the CD-ROM drive |
|
Numeric lock |
Green |
The numeric keypad on the keyboard is enabled |
|
Caps lock |
Green |
Caps Lock mode is enabled |
|
Scroll lock |
Green |
Scroll Lock mode is enabled |
|
Suspend mode |
Green |
The computer is in suspend mode |
|
Blinking green |
The computer is entering suspend mode or hibernation mode, or is resuming normal operation | |
|
Power on |
Green |
The computer is operational |
|
Search Keywords |
| |
|
Hint Category |
General Information | |
|
Date Created |
11-09-98 | |
|
Last Updated |
19-01-99 | |
|
Revision Date |
19-01-2000 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 380Z | |
|
Machine Type |
2635, 2636 | |
|
Model |
Various | |
|
