Service Hints & Tips |
Document ID: GKEY-3HKEMK |
PCServer704 - Jumpers
Applicable to: World-Wide
Jumpers

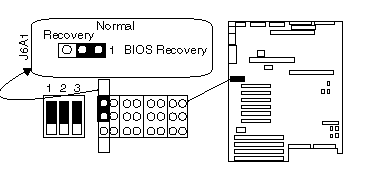

BIOS Recovery Jumper (J6A1)
|
Jumpers |
Function |
|
1-2 |
Normal BIOS boot block |
|
2-3 |
Recovery BIOS boot block |
|
Factory |
default setting. |

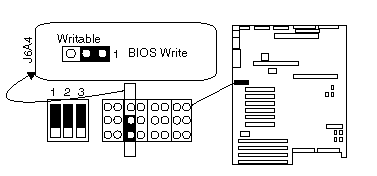

BIOS Write Jumper J6A4
|
Jumpers |
Function |
|
1-2 |
Disables BIOS update of flash memory |
|
2-3 |
Enables BIOS update of flash memory with special utility |
|
Factory |
default setting. |

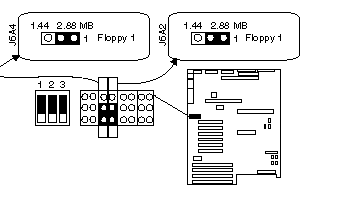

Floppy 0 Jumper at J6A4
Floppy 1 Jumper at J6A2
|
Jumpers |
Function |
|
1-2 |
For 2.88 MB diskette drive, disable automatic size detection. |
|
2-3 |
For 1.44 MB diskette drive, enable automatic size detection. |
|
Factory |
default setting. |
|
Search Keywords |
| |
|
Hint Category |
Configuration, Hardware Maintenance Information | |
|
Date Created |
30-05-97 | |
|
Last Updated |
28-05-98 | |
|
Revision Date |
27-05-99 | |
|
Brand |
IBM PC Server | |
|
Product Family |
PC Server 704 | |
|
Machine Type |
8650 | |
|
Model |
Various | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
| |
|
