TP General - Screw Size Chart
Applicable to: World-Wide

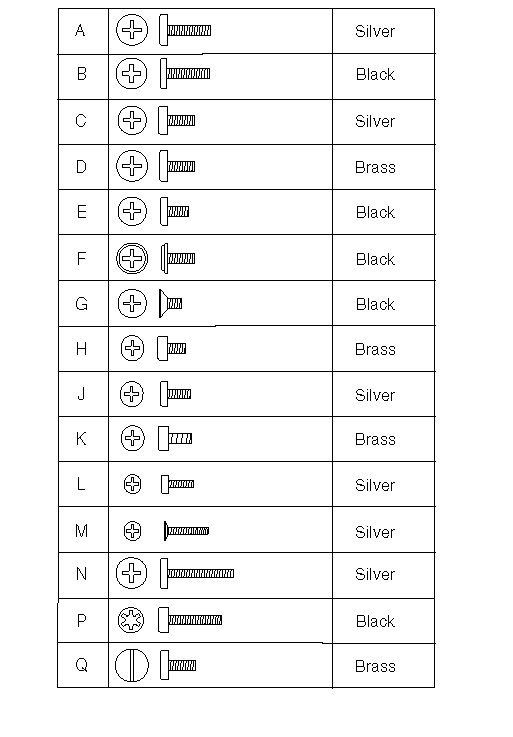

Screw Size Chart:
Use the chart below to match the size and shape of the screws used in the computer you are servicing.

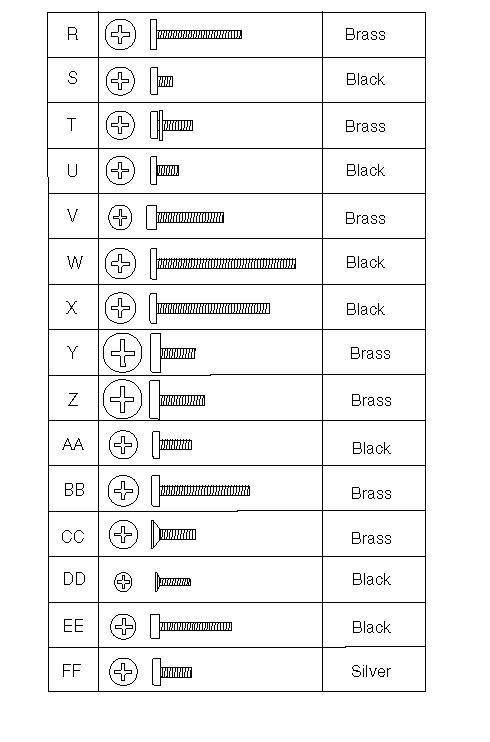

Screw Size Chart (continued):
Use the chart below to match the size and shape of the screws used in the computer you are servicing.

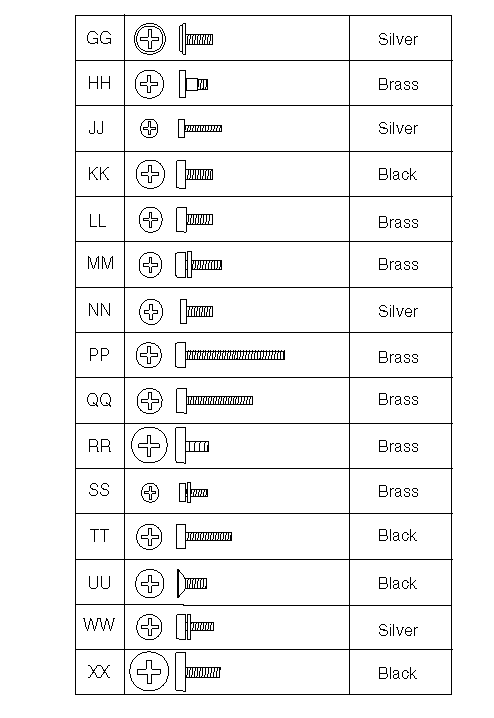

Screw Size Chart (continued):
Use the chart below to match the size and shape of the screws used in the computer you are servicing.
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
06-12-96 | |
|
Last Updated |
10-08-98 | |
|
Revision Date |
07-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPads General | |
|
Machine Type |
2523, 2614, 2615, 2618, 3545, 3546, 8543, 8551, 8554, 2603, 2604, 3550, 8573 | |
|
Model |
Various | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
N/A | |
|
