IBM ValuePoint - Type 64xx system board
Applicable to: World-Wide

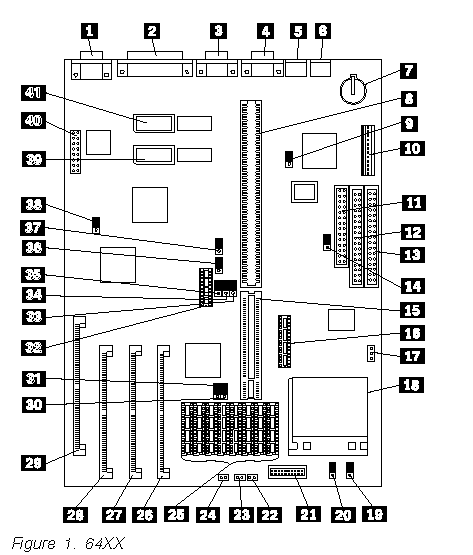

64XX System Board:
64XX System Board:
|
1 |
Video Port |
|
2 |
Parallel Port |
|
3 |
Serial Port (Comm B) |
|
4 |
Serial Port (Comm A) |
|
5 |
Mouse Port |
|
6 |
Keyboard Port |
|
7 |
Battery |
|
8 |
Riser Connector |
|
9 |
IRQ1 & IRQ2 |
|
10 |
Power Supply Connector |
|
11 |
Diskette Drive Cable Connector |
|
12 |
Hard Disk Drive Cable Connector |
|
13 |
Hard Disk Drive Cable Connector |
|
14 |
Write-Protect Jumper |
|
15 |
Riser Connector Extension |
|
16 |
Cache Tag RAM |
|
17 |
Fan Power Connector |
|
18 |
Processor Socket |
|
19 |
SL to non-SL Processor Jumper |
|
20 |
Overdrive / DX Jumper |
|
21 |
DX4 Voltage Regulator Connector |
|
22 |
Power-on LED |
|
23 |
Hard Disk LED |
|
24 |
Speaker |
|
25 |
128/256KB External Cache Connectors |
|
26 |
Memory Module Connector, Bank 1 |
|
27 |
Memory Module Connector, Bank 2 |
|
28 |
Memory Module Connector, Bank 3 |
|
29 |
Memory Module Connector, Bank 4 |
|
30 |
128K Cache Jumper (to rear) |
|
31 |
128K Cache Jumper (to rear) |
|
32 |
Cache Tag RAM |
|
33 |
VESA / PCI Jumper (VESA to rear) |
|
34 |
VESA / PCI Jumper (VESA to rear) |
|
35 |
VESA / PCI Jumper (VESA to rear) |
|
36 |
Frequency Synthesizer |
|
37 |
Frequency Synthesizer |
|
38 |
Video Enable/Disable |
|
39 |
Extended Video Memory Connector |
|
40 |
Video Feature Connector |
|
41 |
Extended Video Memory Connector |
|
Search Keywords |
| |
|
Document Category |
Service Parts | |
|
Date Created |
24-12-96 | |
|
Last Updated |
13-11-98 | |
|
Revision Date |
12-11-99 | |
|
Brand |
IBM PC | |
|
Product Family |
ValuePoint | |
|
Machine Type |
6472, 6482, 6492, 6484, 6494 | |
|
Model |
all | |
|
