Parts Information |
Document ID: LWIK-3TTJKW |
TP 380XD,385XD - LCD unit FRU parts listing
Applicable to: World-Wide
|

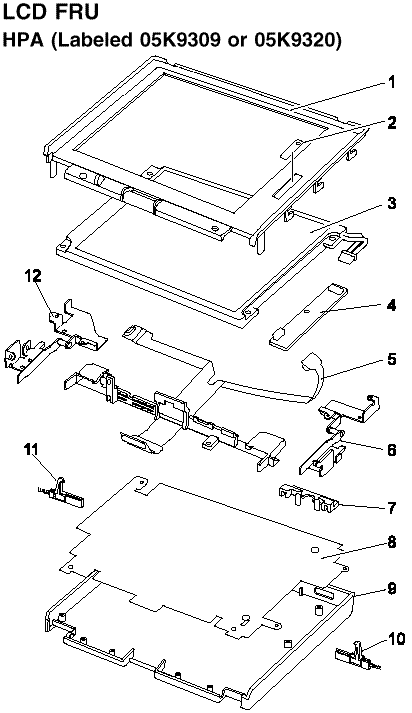

Index |
Description |
FRU # |
|
1 |
Front Bezel (included in item# 13 LCD Cover Kit) |
- |
|
2 |
Contrast Control Knob (included in item# 15 LCD Misc. Parts Kit) |
- |
|
3 |
LCD Panel |
05K9336 |
|
4 |
Inverter Card |
05K3194 |
|
5 |
LCD Cable Assembly |
12J0139 |
|
6 |
Right Hinge (included in item# 14 Hinge Kit) | |
|
7 |
LED Lens (included in item# 15 LCD Misc.Kit) | |
|
8 |
Insulation Sheet (included in item# 13 LCD Cover Kit) |
- |
|
9 |
LCD Cover (included in item# 13 LCD Cover Kit) |
- |
|
10 |
Right Latch (included in item# 15 LCD Misc. Parts Kit) |
- |
|
11 |
Left Latch (included in item# 15 LCD Misc. Parts Kit) |
- |
|
12 |
Left Hinge (included in item# 14 Hinge Kit) |
- |
|
13 |
LCD Cover Kit including: |
05K4779 |
|
Front Bezel (item# 1) | ||
|
Insulation Sheet (item# 8) | ||
|
LCD Cover (item# 9) | ||
|
14 |
Hinge Kit including: |
73H9942 |
|
15 |
LCD Misc. Parts Kit including: |
73H9949 |
|
LCD Cable Holder | ||
|
Contrast Control Knob (item# 2) | ||
|
LED Lens (item# 7) | ||
|
Right Latch, Spring, Holder (item# 10) | ||
|
Left Latch, Spring, Holder (item# 11) | ||
|
Screw Cap |
|

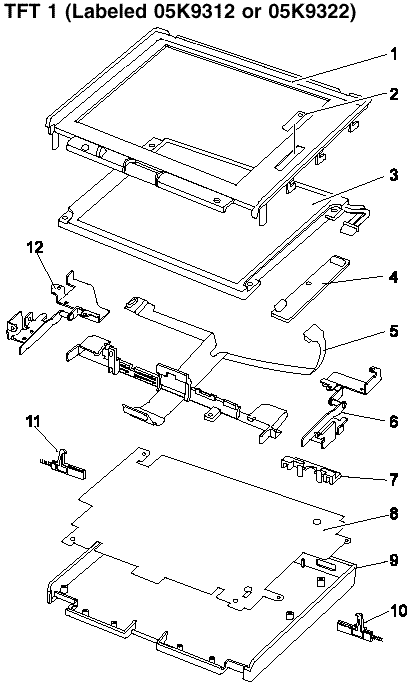

Index |
Description |
FRU # |
|
1 |
Front Bezel (included in item# 13 LCD Cover Kit) |
- |
|
2 |
Contrast Control Knob (included in item# 15 LCD Misc. Parts Kit) |
- |
|
3 |
LCD Panel |
05K9335 |
|
4 |
Inverter Card |
05K3197 |
|
5 |
LCD Cable Assembly |
73H9948 |
|
6 |
Right Hinge (included in item# 14 Hinge Kit) |
- |
|
7 |
LED Lens (included in item# 15 LCD Misc.Kit) |
- |
|
8 |
Insulation Sheet (included in item# 13 LCD Cover Kit) |
- |
|
9 |
LCD Cover (included in item# 13 LCD Cover Kit) |
- |
|
10 |
Right Latch (included in item# 15 LCD Misc. Parts Kit) |
- |
|
11 |
Left Latch (included in item# 15 LCD Misc. Parts Kit) |
- |
|
12 |
Left Hinge (included in item# 14 Hinge Kit) |
- |
|
13 |
LCD Cover Kit including: |
05K4780 |
|
Front Bezel (item# 1) | ||
|
Insulation Sheet (item# 8) | ||
|
LCD Cover (item# 9) | ||
|
14 |
Hinge Kit including: |
73H9943 |
|
15 |
LCD Misc. Parts Kit including: |
73H9949 |
|
LCD Cable Holder | ||
|
Contrast Control Knob (item# 2) | ||
|
LED Lens (item# 7) | ||
|
Right Latch, Spring, Holder (item# 10) | ||
|
Left Latch, Spring, Holder (item# 11) | ||
|
Screw Cap |
|

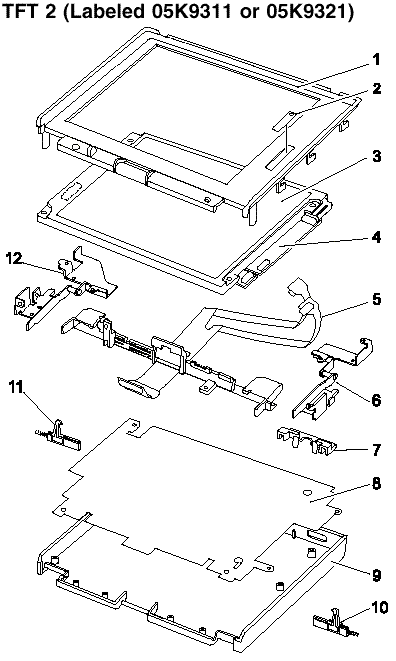

Index |
Description |
FRU # |
|
1 |
Front Bezel (included in item# 13 LCD Cover Kit) |
- |
|
2 |
Contrast Control Knob (included in item# 15 LCD Misc. Parts Kit) |
- |
|
3 |
LCD Panel |
05K9315 |
|
4 |
Inverter Card |
05K3150 |
|
5 |
LCD Cable Assembly |
05K4358 |
|
6 |
Right Hinge (included in item# 14 Hinge Kit) |
- |
|
7 |
LED Lens (included in item# 15 LCD Misc.Kit) |
- |
|
8 |
Insulation Sheet (included in item# 13 LCD Cover Kit) |
- |
|
9 |
LCD Cover (included in item# 13 LCD Cover Kit) |
- |
|
10 |
Right Latch (included in item# 15 LCD Misc. Parts Kit) |
- |
|
11 |
Left Latch (included in item# 15 LCD Misc. Parts Kit) |
- |
|
12 |
Left Hinge (included in item# 14 Hinge Kit) |
- |
|
13 |
LCD Cover Kit including: |
05K4781 |
|
Front Bezel (item# 1) | ||
|
Insulation Sheet (item# 8) | ||
|
LCD Cover (item# 9) | ||
|
14 |
Hinge Kit including: |
73H9943 |
|
15 |
LCD Misc. Parts Kit including: |
73H9949 |
|
LCD Cable Holder | ||
|
Contrast Control Knob (item# 2) | ||
|
LED Lens (item# 7) | ||
|
Right Latch, Spring, Holder (item# 10) | ||
|
Left Latch, Spring, Holder (item# 11) | ||
|
Screw Cap |
|
Search Keywords |
| |
|
Document Category |
Hardware Maintenance Information | |
|
Date Created |
23-04-98 | |
|
Last Updated |
18-08-98 | |
|
Revision Date |
17-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 380XD, ThinkPad 385XD | |
|
Machine Type |
2635 | |
|
Model |
Various | |
|
