Laptop L40SX - Locations
Applicable to: World-Wide
Locations:

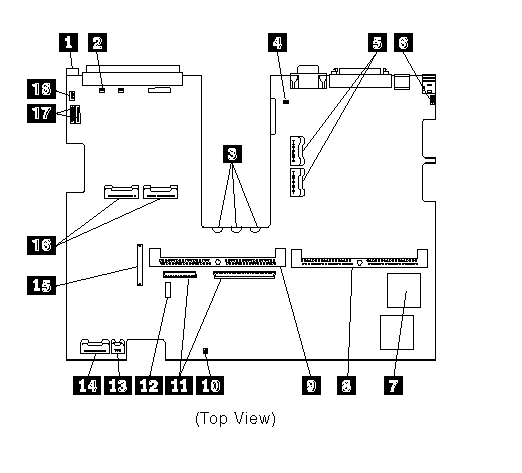

System Board:
|
1 |
Suspend/Resume Switch |
|
2 |
Backup Battery Connector |
|
3 |
Battery Contacts |
|
4 |
Standby-Battery Connector |
|
5 |
Diskette-Drive Connectors |
|
6 |
Display Power Connector |
|
7 |
Math Coprocessor Connector |
|
8 |
Memory-Module Connector 1 |
|
9 |
Memory-Module Connector 2 |
|
10 |
Speaker Connector |
|
11 |
Keyboard Connectors |
|
12 |
Password-Override Connector |
|
13 |
Switch-Assembly Connector |
|
14 |
System-Status Display Connector |
|
15 |
Option Connector |
|
16 |
Hard-Disk Drive Connectors |
|
17 |
Display Signal Connectors |
|
18 |
Suspend/Resume Switch Connector |
|
