PC Server 325 - Optional Microprocessor locations
Applicable to: World-Wide

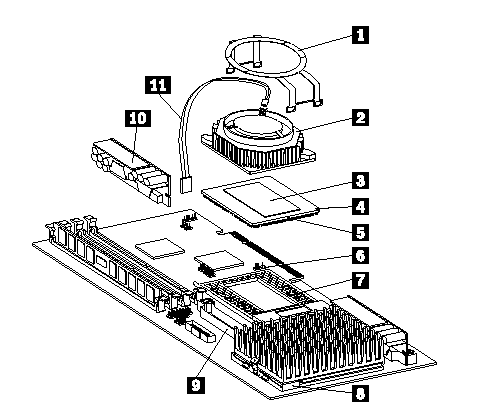

Optional Microprocessor:
|
1 |
Heat sink retention clip |
|
2 |
Fan sink |
|
3 |
Heater spreader |
|
4 |
Pin 1 location |
|
5 |
Microprocessor |
|
6 |
Fan power cable connector (J21) |
|
7 |
Optional processor board socket (U6), empty, with lever in closed, locked position |
|
8 |
Primary processor board socket (U5), with lever in closed, locked position |
|
9 |
Optional voltage regulator connector |
|
10 |
Optional voltage regulator module (VRM) |
|
11 |
Fan power cable |
|
