Parts Information |
Document ID: DDSE-43EUJV |
Netfinity 5000 - System Board Illustration
Applicable to: World-Wide

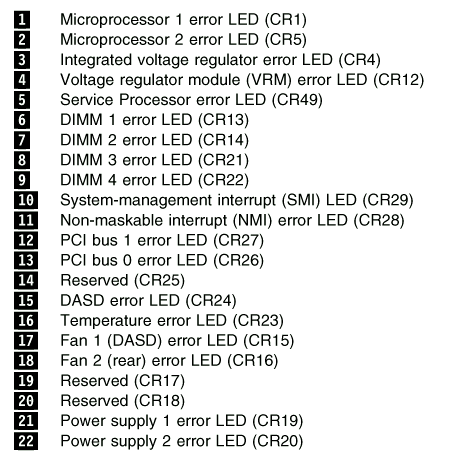

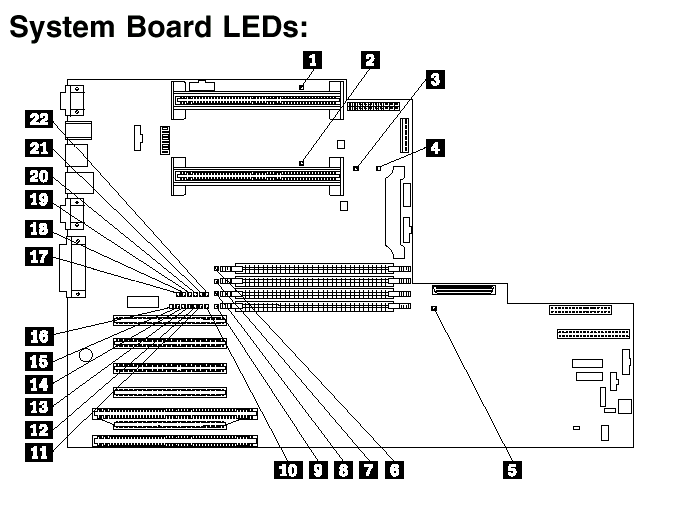

System Board Illustration
The following illustrations show some of the system board components. Refer to the label inside the system cover for detailed information.
|
Search Keywords |
| |
|
Document Category |
System Boards | |
|
Date Created |
22-12-98 | |
|
Last Updated |
23-12-98 | |
|
Revision Date |
22-12-99 | |
|
Brand |
IBM PC Server | |
|
Product Family |
Netfinity 5000 | |
|
Machine Type |
8659 | |
|
Model |
ALL | |
|
