TP 560X - 1060 LCD Assembly
Applicable to: World-Wide

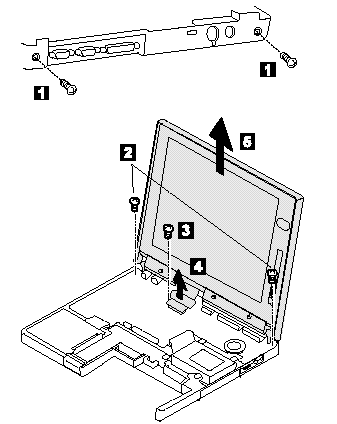

1060 LCD Assembly:
Battery Pack (1030)
Keyboard Unit (1050)
|
Step |
Length (Quantity) |
Torque |
|
1 |
4 mm, nylon coating (2) |
4.0 kgcm |
|
2 |
7 mm, nylon coating (2) |
4.0 kgcm |
|
3 |
4 mm (1) |
3.0 kgcm |
|
Note: |
Do not use the screw that you have removed. |
|
Use a new screw and tighten the screw to the torque specification shown. |
|
