Parts Information |
Document ID: GSMH-3BVG7P |
|
This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose. |
TP 700/700C - Parts Listing
Applicable to: World-Wide

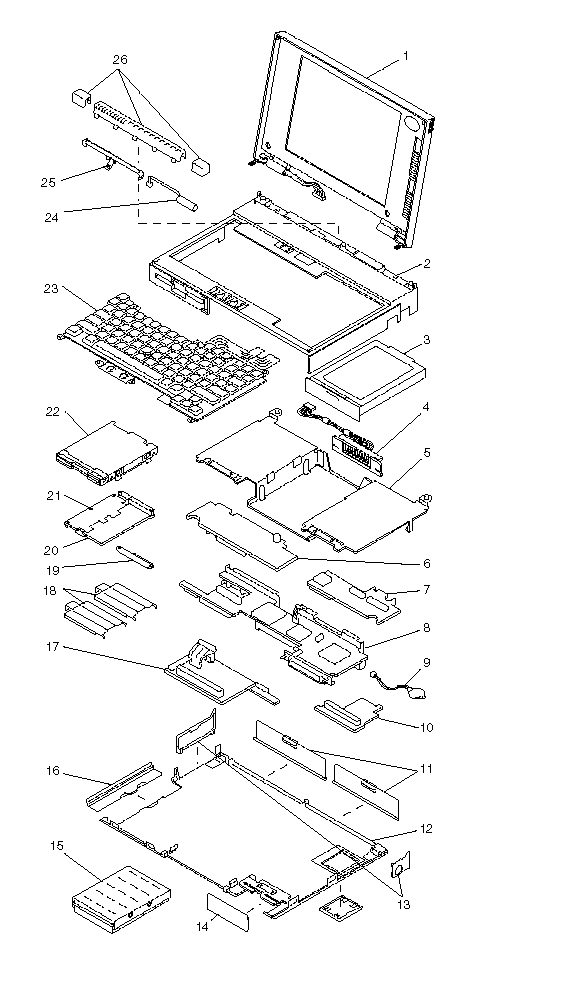

Parts Listing (700):
Index
|
1 |
LCD (700)1 |
44G3806 |
|
For Germany (Gray) (700)1 |
48G9321 | |
|
1 |
LCD Bezel Assembly (700)1 |
53G7831 |
|
For Germany (Gray)1 |
53G7832 | |
|
Contrast and Brightness Slide (700) |
53G7803 | |
|
1 |
LCD (700C)1 |
48G8723 |
|
For Germany (Gray) (700C)1 |
48G9909 | |
|
1 |
LCD Hinge Kit |
85G8199 |
|
1 |
LCD Case (700C) |
44G3875 |
|
Frame, Keyboard (700) |
44G3797 | |
|
For Germany (Gray) (700) |
48G9313 | |
|
For Japan (700) |
44G3798 | |
|
2 |
Frame, Keyboard (700C) |
48G8945 |
|
For Germany (Gray) (700C) |
48G9905 | |
|
For Japan (700C) |
48G8946 | |
|
3 |
Battery Pack, Nickel Metal Hydride |
44G3811 |
|
For Benelux |
49G2190 | |
|
For Germany (Gray) |
49G2036 | |
|
For Swiss |
44G3812 | |
|
4 |
Battery Terminal Assembly |
44G3779 |
|
5 |
Frame, Stiffener |
44G3771 |
|
6 |
Voltage Converter w/lid susp. switch (700) |
44G3784 |
|
Voltage Converter w/lid susp. switch (700C) |
48G8712 | |
|
7 |
Keyboard Control Card, 84-key (U.S.) |
44G3783 |
|
Keyboard Control Card, 85-key |
49G2096 | |
|
Keyboard Control Card, 89-key |
49G2097 | |
|
8 |
System Board (700) |
44G3780 |
|
System Board (700C) |
49G1975 | |
|
50MHz Upgrade System Board (700) |
54G1046 | |
|
240MB Upgrade System Board (700) |
53G7822 | |
|
50MHz/240MB Upgrade System Board (700) |
53G7824 | |
|
50MHz Upgrade System Board (700C) |
54G1047 | |
|
240MB Upgrade System Board (700C) |
53G7823 | |
|
50MHz/240MB Upgrade System Board (700C) |
53G7825 | |
|
Power Switch Knob/Actuator |
49G2140 | |
|
For Germany (Gray) |
49G2156 | |
|
LED Flexible Plastic Cable |
49G2142 | |
|
9 |
Backup Battery, Lithium |
44G3778 |
|
10 |
Processor Card |
44G3781 |
|
10 |
50MHz Upgrade Processor Card (700,700C) |
54G1045 |
|
11 |
I/O Connectors Cover Group |
44G3769 |
|
For Germany (Gray) |
48G9315 | |
|
12 |
Bottom Cover Assy, U.S.,Can,LAD (700) |
44G3800 |
|
For Benelux |
54G0449 | |
|
For European Countries |
44G3801 | |
|
Bottom Cover Assy, U.S.,Can,LAD (700C) |
48G8719 | |
|
For Benelux |
49G2732 | |
|
For European Countries |
48G8721 | |
|
For Germany (Gray) |
49G1983 | |
|
For Japan |
48G8722 | |
|
13 |
Covers include spacers for LCD hinge Model 700 Cover |
53G7817 |
|
For Germany (Gray) |
48G9316 | |
|
Model 700C Cover |
48G8714 | |
|
For Germany (Gray) |
48G9906 | |
|
14 |
Door, Hard Disk Drive |
44G3777 |
|
For Germany (Gray) |
48G9317 | |
|
15 |
Hard Disk Drive, 80MB |
95F4743 |
|
Hard Disk Drive, 120MB |
95F4744 | |
|
Hard Disk Drive, 240MB |
66G3200 | |
|
16 |
Cover, IC DRAM Card |
49G1108 |
|
For Germany (Gray) |
49G2154 | |
|
17 |
Video Card (700) |
44G3782 |
|
Video Card (700C) |
35G4823 | |
|
18 |
Tray |
44G3773 |
|
19 |
Guide, Modem |
44G3774 |
|
Modem Door (700) |
53G7815 | |
|
Modem Door (700) (For Germany) |
53G7816 | |
|
Modem Door (700C) |
53G7817 | |
|
Modem Door (700C) |
53G7818 | |
|
Telephone Cable |
94X1540 | |
|
20 |
Base Memory Card, 4MB |
44G3785 |
|
21 |
Slot Holder, IC DRAM Card |
44G3772 |
|
22 |
Diskette Drive Assembly |
49G2198 |
|
Cable, Diskette Drive |
44G3776 | |
|
23 |
Keyboard | |
|
24 |
Standby Battery |
44G3799 |
|
For Benelux |
49G1149 | |
|
For Swiss |
49G2093 | |
|
25 |
Indicator Assembly (700) |
44G3787 |
|
Standoff LED (700) |
44G3788 | |
|
25 |
Indicator Assembly (700C) |
48G8729 |
|
Standoff LED (700C) |
48G8731 | |
|
26 |
Panel Groups include LED cover, 2-2.5 x 8mm, |
|
|
Panel Cover Group (700) |
44G3789 | |
|
For Germany (Gray) |
48G9320 | |
|
Panel Cover Group (700C) |
48G8715 | |
|
For Germany (Gray) |
48G9908 | |
|
For Japan |
49G1982 | |
|
Speaker |
07G1229 | |
|
Holder, Speaker |
44G3786 | |
|
AC Adapter (25W, 3-pin) (700) |
44G3808 | |
|
AC Adapter (40W, 3-pin) (700C) |
49G2196 | |
|
For Japan (40W, 2-pin) |
49G2197 | |
|
Data/Fax Modem Adapter (U.S./Can.) |
94X2554 | |
|
Data/Fax Modem Adapter (Japan only) |
94X2506 | |
|
High-Speed Data/Fax Modem (U.S./Can.)2 |
42G2592 | |
|
Serial Adapter |
79F6840 | |
|
Internal Modem Attachment Screw |
53G7847 | |
|
Screw Kit (see 720 parts for detail) |
53G7819 | |
|
Foot, Right/Left (w/ springs) |
49G2053 | |
|
For Germany (Gray) |
49G2155 | |
|
Miscellaneous Parts Group (700) |
44G3790 | |
|
Miscellaneous Parts Group (700C) |
48G8944 | |
|
Parts Group includes keyboard support bracket, DC-in holder, battery terminal clip, stud, |
|
