Parts Information |
Document ID: JWOE-3LMPZZ |
Aptiva - 2137 Diskette, hard drive service parts
Applicable to: World-Wide

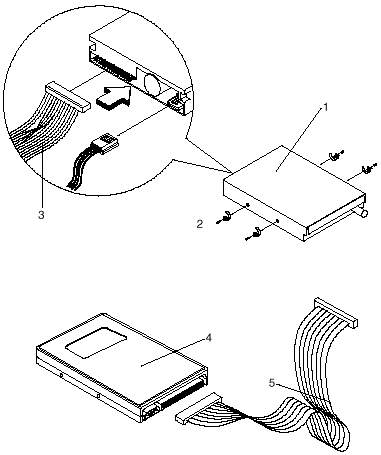

Assembly 3: FDD, HDD Drive
|
|
|
|
Asm-Index |
FRU Number |
Description |
|
3-1 |
02K2299 |
Assembly 1.44MB Diskette Drive |
|
3-2 |
01K4259 |
Screw for Diskette Drive |
|
3-3 |
02K2342 |
Diskette Drive Cable |
|
3-4 |
03K0330 |
2.1GB Hard Disk Drive, Quantum, 5.25-in. |
|
3-4 |
02K2263 |
4.3GB Hard Disk Drive, Quantum, 5.25-in. |
|
3-4 |
02K2278 |
6.4GB Hard Disk Drive, Quantum, 5.25-in. |
|
3-4 |
10L6627 |
2.1GB Hard Disk Drive, Quantum, 3.5-in., Supports Ultra DMA |
|
3-4 |
10L6629 |
3.2GB Hard Disk Drive, Quantum, 3.5-in., Supports Ultra DMA |
|
3-4 |
10L6630 |
4.3GB Hard Disk Drive, Quantum, 3.5-in., Supports Ultra DMA |
|
3-4 |
10L6629 |
3.2GB Hard Disk Drive, Seagate, 3.5-in. |
|
3-4 |
10L6630 |
4.3GB Hard Disk Drive, Seagate, 3.5-in. |
|
3-4 |
10L6628 |
2.5GB Hard Disk Drive, Maxtor, 3.5-in., Supports Ultra DMA |
|
3-5 |
01K4224 |
Hard Disk Drive Cable |
|
3-NS |
01K4260 |
Mounting Screw for 3.5-in. Hard Disk Drive |
|
3-NS |
01K4259 |
Mounting Screw for 5.25-in. Hard Disk Drive |
|
3-NS |
12J6861 |
Hard Disk Drive Cover for K6-233/266 CPU only |
|

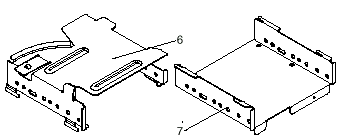

3-6 |
01K4201 |
3.5-in. Drive Frame, Upper |
|
3-7 |
01K4202 |
3.5-in. Drive Frame, Lower |
|
