TP 765 - 1080 LCD Unit

32.639 bytes

Service Hints & Tips

Document ID: RJJR-3PGM3T

TP 765 - 1080 LCD Unit

Applicable to: World-Wide

1080 LCD Unit
Diskette Drive or CD-ROM Drive (1020)
Battery Pack (1030)
Keyboard Unit (1070)
Top Cover (1060)

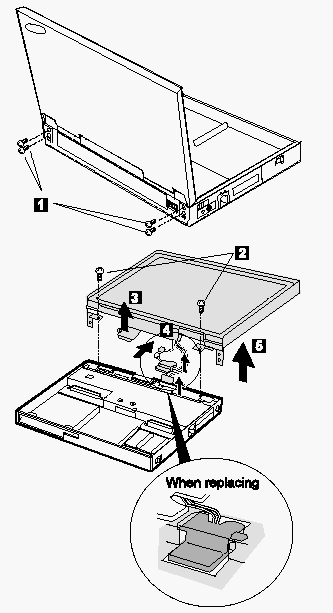

Step

Size (quantity)

Memo (torque)

1

M2.5 x 4 mm (4)

Nylon coating (4.5 kgcm)

2

M2.5 x 6 mm (2)

Nylon coating (4 kgcm)

Note: Do not reuse a screw you removed. Use a new screw and tighten the screw to the torque specification shown.

Search Keywords

Hint Category

Hardware Maintenance Information

Date Created

05-12-97

Last Updated

28-08-98

Revision Date

18-08-99

Brand

IBM ThinkPad

Product Family

ThinkPad 765L, ThinkPad 765D

Machine Type

9546, 9547

Model

various

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes

Step	Size (quantity)	Memo (torque)
1	M2.5 x 4 mm (4)	Nylon coating (4.5 kgcm)
2	M2.5 x 6 mm (2)	Nylon coating (4 kgcm)
