Parts Information

Document ID: GSMH-3ARFNH

This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose.

3516 DASD Hot-Swap Expansion Enclosure - System parts listing

Applicable to: World-Wide

Service Information:

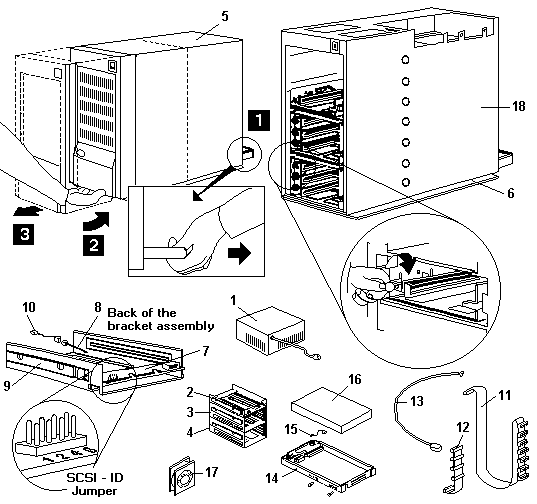

Index:	Description	FRU P/N:
1.	200 Watt Power Supply (115/230 Vac)	92F0411
2.	Hot Swap Rack (1 bay)	61G3527
3.	3-Tray Adapter (Top)	71G0208
4.	3-Tray Adapter (Bottom)	71G0209
5.	Cover Assembly	06H2605
	Keylock Assembly	61G2177
6.	Pedestal	61G2174
7.	Adapter Card Ass., not Terminated	61G3835
	Adapter Card Ass. Terminated (bottom card for 71G0209)	subs p/n 71G0216 to 71G0209
8.	Microswitch Shaft (for 71G0208, 71G0209 and 61G3527)	61G3838
	Microswitch Housing (for 71G0208, 71G0209)	61G3837
9.	Hot Swap Rack Rail	71G4982
10.	Microswitch Cable Assembly	71G4981
11.	Internal SCSI Cable Assembly (7x)	06H2601
	External SCSI Cable 16-bit Fast/Wide	52G9501
12.	Drive Power Cable Assembly (3x)	06H2602
13.	Power-good Cable	06H3246
14.	68 Position Tray Assembly	71G0212
15.	1GB SCSI F/W Hard Disk (Drive Tray Address Cable)	71G0215
	Hard Disk Tray (w/ Switch)	06H3274
16.	1GB SCSI F/W Hard Disk Drive	71G5040
17.	Fan Assembly	71G0217
18.	Base Frame Assembly	06H2604
	1-Meter External 68/68 Cable (68-pin / ext.connector Type-C)	06H3231
	Miscellaneous Parts Kit: - Blank Bracket Screws (2x) - EMC Springs (2x) - Fan Mounting Screws (2x) - Power Supply Mounting Screws (2x) - Power Switch Mounting Screws (2x) - Stand-off (2x) - EMC Springs (2x)	06H3241
