Parts Information

Document ID: GSMH-3EFHDZ

PCServer330 - System Board

Applicable to: World-Wide

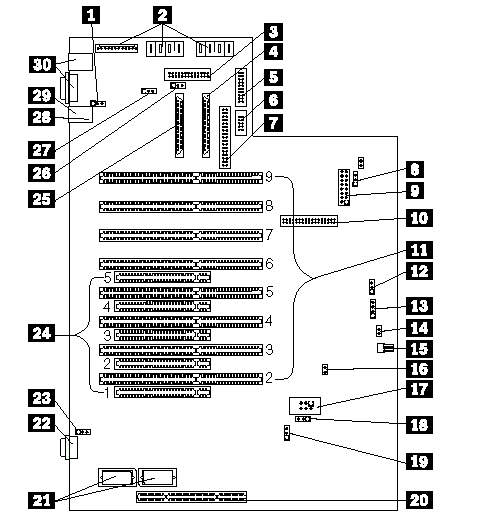

System Board:

1	Ethernet Enable Jumper (J22)
2	Power Connectors
3	Parallel Connector
4	Internal SCSI Connector
5	Serial Connector
6	Infrared Connector
7	Diskette Drive Connector
8	5 Volt Select Jumper (J33)
9	Operator Panel Connector
10	Reserved
11	EISA/ISA Slots
12	Flash Enable Jumper (J39)
13	Speaker Connector
14	Reserved
15	System Fan Power Connector
16	System Reset (J27)
17	C2 Security Cable Connector
18	System Management Enable Jumper (J49)
19	Power-On Password Jumper (J12)
20	Processor Board Connector
21	Video RAM Sockets
22	Video Connector
23	Video Enable Jumper (J25)
24	PCI Slots
25	External SCSI Connector (J29)
26	SCSI Bus Termination Jumper (J38)
27	SCSI Controller Enable Jumper (J26)
28	Mouse Connector
29	Keyboard Connector
30	Ethernet Connectors

System Board Jumper Settings:

Jumper	Description	Setting
J12	Power-on password reset For instructions on resetting the power-on password, see żBypassing an Unknown Power-on Password—.	Pins 2-3 (default)
J22	- Ethernet controller enabled - Ethernet controller disabled	Pins 2-3 (default) Pins 1-2
J25	Video controller enabled Video controller disabled	Pins 1-2 (default) Pins 2-3
J26	SCSI controller enabled SCSI controller disabled	Pins 2-3 (default) Pins 1-2
J38	- External SCSI termination enabled - External SCSI termination disabled	Pins 2-3 (default) Pins 1-2
J39	- Flash update jumper enabled - Flash update jumper disabled	Pins 2-3 (default) Pins 1-2
J49	- System Management Adapter (not installed) - System Management Adapter (installed)	Pins 1-2 Pins 2-3
