Parts Information |
Document ID: GSMH-3BDL9Z |
|
This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose. |
TP 370C - FRU parts listing
Applicable to: World-Wide
Model 370C:

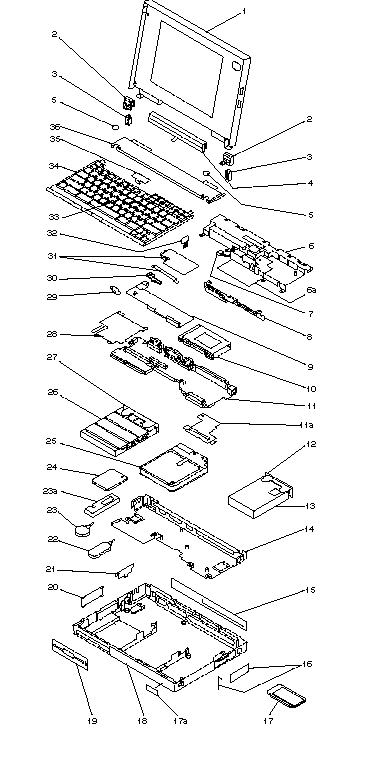

System Unit (370C):
|
Index |
System Unit |
Part # |
|
1 |
LCD Assembly |
29H7543 |
|
To view NEW LCD FRU's |
click here: | |
|
2 |
Hinge Cover |
66G5047 |
|
3 |
Hinge Bracket, Right, Left |
66G5057 |
|
4 |
Status Indicator Assembly |
29H6688 |
|
5 |
Screw Cover |
66G5046 |
|
6 |
Speaker Shield Assembly |
84G4290 |
|
6a |
Insulator |
84G4357 |
|
7 |
Speaker (Includes speaker holder) |
66G3754 |
|
8 |
Interposer Card |
66G9242 |
|
9 |
DC/DC Card |
84G4329 |
|
10 |
PCMCIA Slot Assembly |
66G5121 |
|
11 |
System Board |
29H6690 |
|
11a |
Processor Card (25/75 MHz) |
84G4288 |
|
12 |
HDD Removal Strap |
66G5122 |
|
13 |
Hard Disk Drive (includes strap, index 12) | |
|
340MB |
66G5068 | |
|
540MB |
84G4319 | |
|
810MB |
85G0961 | |
|
14 |
Lower Shield |
84G4291 |
|
15 |
Rear Connector Cover |
66G5050 |
|
16 |
PCMCIA Cover |
66G5053 |
|
17 |
PCMCIA Device | |
|
17a |
Name Label |
66G9228 |
|
18 |
Base Cover Assembly includes coil spring, insulator, foot, power switch knob, holder, latch buttons | |
|
Base Cover Assembly |
29H7544 | |
|
For Benelux |
29H7547 | |
|
For Japan |
29H7545 | |
|
19 |
Bezel, Diskette Drive |
66G5051 |
|
20 |
Cover, Option Bay |
66G5052 |
|
21 |
Blank Audio Bezel |
29H7546 |
|
Audio Bezel |
84G4292 | |
|
22 |
Standby Battery |
66G3755 |
|
For Belgium, Dutch |
66G3761 | |
|
For Switzerland |
66G3758 | |
|
23 |
Backup Battery |
84G2263 |
|
23a |
Attachment Holder |
84G2294 |
|
24 |
IC DRAM Card (See options) | |
|
25 |
Battery Pack (Nickel Metal Hydride) |
29H6687 |
|
26 |
Diskette Drive (3-mode) |
84G2269 |
|
27 |
Diskette Drive Removal Strap |
66G5123 |
|
28 |
Base Plate |
84G2293 |
|
29 |
Hinge Cover Bracket |
29H8762 |
|
30 |
Bracket Shield |
84G5861 |
|
31 |
Fax/Audio Spacer |
84G5862 |
|
Audio Card |
66G5037 | |
|
32 |
Keyboard Lock |
66G0031 |
|
33 |
TrackPoint III Cap | |
|
34 |
Keyboard Assembly (See keyboard list) |
see below |
|
35 |
Leaf Spring Plate |
66G0041 |
|
36 |
Upper Cover |
84G2257 |
|
PCMCIA Security Plate |
85G8625 | |
|
EMI Spring Plate |
85G0948 | |
|
DC Plug |
85G6664 |
Keyboard:
|
Arabic |
66G0163 |
|
Belgian |
66G0161 |
|
Canadian French |
66G0169 |
|
Danish |
66G0160 |
|
Dutch |
66G0158 |
|
Finnish |
66G0157 |
|
French |
66G0154 |
|
German (Black) |
66G6402 |
|
Greek |
66G0167 |
|
Hebrew |
66G0164 |
|
Italian |
66G0156 |
|
Japanese |
66G0171 |
|
Latin American |
66G0168 |
|
Norwegian |
66G0162 |
|
Portuguese |
66G0165 |
|
Spanish |
66G0159 |
|
Swedish |
66G0157 |
|
Swiss/French |
66G0155 |
|
Swiss/German |
66G0153 |
|
Turkish |
66G0166 |
|
U.K. English |
66G0151 |
|
U.S. English |
66G0150 |
|
Russian |
85G7443 |
|
Search Keywords |
| |
|
Document Category |
Hardware Maintenance Information | |
|
Date Created |
13-11-96 | |
|
Last Updated |
03-03-99 | |
|
Revision Date |
03-03-2000 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 370 | |
|
Machine Type |
9545 | |
|
Model |
Various | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
N/A | |
|
