Service Hints & Tips |
Document ID: YAST-3SHQ76 |
ISDN-S0 Active 2000 Adapter - ISA settings
Applicable to: World-Wide
The stettings for the ISA adapter are:
IRQ and IO Addresses supported with ISA Active 2000
IRQ's : 3, 5, 10, 11, 12, 15 (soft setup)
IO's: 200, 240, 280, 2C0, 300, 340, 380, CE60, CEA0, CEE), CF20, CF60, CFA0, CFE0 (DIP switch)

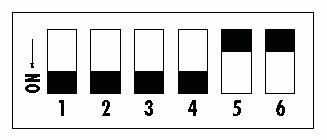

Table of IO ranges possible:
|
I/O Address |
SW1 |
SW2 |
SW3 |
SW4 |
SW5 |
SW6 |
|
0200h |
on |
on |
on |
on |
off |
off |
|
0240h |
off |
on |
on |
on |
off |
off |
|
0280h |
on |
off |
on |
on |
off |
off |
|
02C0h |
off |
off |
on |
on |
off |
off |
|
0300h |
on |
on |
off |
on |
off |
off |
|
0340h |
off |
on |
off |
on |
off |
off |
|
0380h |
on |
off |
off |
on |
off |
off |
|
CFE0h |
on |
on |
on |
off |
off |
off |
|
CFA0h |
off |
on |
on |
off |
off |
off |
|
CF60h |
on |
off |
on |
off |
off |
off |
|
CF20h |
off |
off |
on |
off |
off |
off |
|
CEE0h |
on |
on |
off |
off |
off |
off |
|
CEA0h |
off |
on |
off |
off |
off |
off |
|
CE60h |
on |
off |
off |
off |
off |
off |
|
disable |
off |
off |
off |
off |
off |
off |
|
