Parts Information |
Document ID: GSMH-3EFGVB |
PCServer330 - Optional Processor
Applicable to: World-Wide

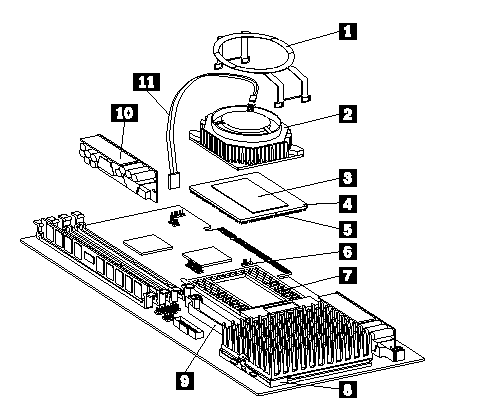

Optional Processor:
|
1 |
Fan sink retention clip |
|
2 |
Fan sink |
|
3 |
Heat spreader |
|
4 |
Pin 1 location |
|
5 |
Microprocessor |
|
6 |
Fan power cable connector (J21) |
|
7 |
Secondary processor board socket, empty, with lever in closed, locked position. |
|
8 |
Primary processor board socket, with lever in closed position |
|
9 |
Secondary VRM connector |
|
10 |
Voltage regulator module (VRM) |
|
11 |
Fan power cable |
|
