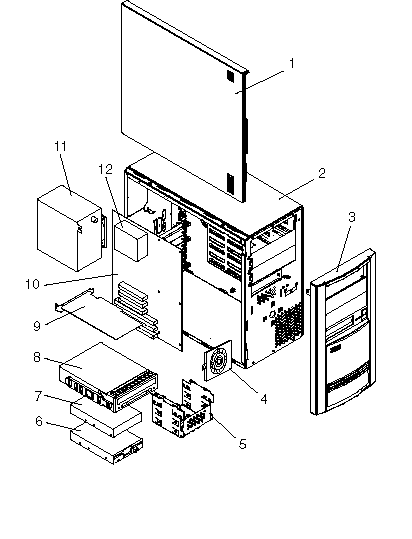

IBM PC360 - Parts diagram/FRU listing
Applicable to: World-Wide
Parts Listing:
|
Index |
System Unit (Type 6598) |
Part Number: |
|
1 |
Side Cover Access Panel |
06H9673 |
|
2 |
Base Frame Assembly (with labels) |
07H0164 |
|
Rear Frame I/O Icon Label |
07H0174 | |
|
System Board Label - Inside Cover |
07H0173 | |
|
EMC Shield |
07H0166 | |
|
3 |
Front Bezel Assembly |
06H9659 |
|
4 |
80 mm Fan Assembly |
06H1796 |
|
5 |
DASD Mounting Tray |
07H0165 |
|
5.25-Inch Blank Bezel |
07H0167 | |
|
Hard Disk Drive LED and Cable |
06H9670 | |
|
6 |
3.5-Inch 1.44 MB Diskette Drive |
93F2361 |
|
Diskette Drive Cable |
06H6344 | |
|
7 |
1.2GB IDE Hard Disk Drive |
07H0383 |
|
IDE Cable |
06H6326 | |
|
7 |
2.2GB SCSI Hard Disk Drive |
06H8561 |
|
U-SCSI PCI Cables |
06H9674 | |
|
8 |
CD-ROM (6X) |
06H9431 |
|
CD-ROM EMC Shields (2) |
07H0171 | |
|
Software Recovery CD |
07H1277 | |
|
9 |
Matrox Graphics Adapter - PCI |
06H9074 |
|
Ultra-SCSI Adapter - PCI (Adaptec) |
07H0141 | |
|
LED Cable (for Ultra-SCSI Adapter) |
07H1278 | |
|
10 |
System Board (no processor, memory) |
06H9658 |
|
Memory - 8 MB (72-Pin 60 ns Non-parity) |
42H2776 | |
|
Memory - 16 MB (72-Pin 60 ns Non-parity) |
42H2777 | |
|
Memory - 16 MB (72-Pin 60 ns Parity) |
92G7294 | |
|
Lithium Battery |
33F8354 | |
|
11 |
Power Supply (200W) |
06H9660 |
|
Power Switch and Cable |
06H9671 | |
|
12 |
150 MHz Processor (without heat sink) |
07H0163 |
|
12 |
200 MHz Processor (without heat sink) |
07H1290 |
|
Accessory Kit (4 Rails) |
06H9672 | |
|
Miscellaneous Parts Kit |
07H0170 | |
|
Jumper Kit |
93F0067 |
|
