TP 560/E - 1100 System Board
Applicable to: World-Wide

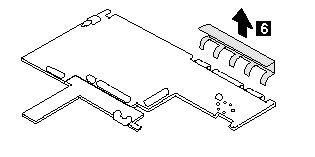

1100 System Board:
DIMM Card (If installed) (1020)
Battery Pack (1030)
Keyboard Unit (1050)
LCD Assembly (1060)
Speaker (1070)
Hard Disk Drive (1080)
PCMCIA Slot Assembly (1090)
|
Notes: |
The system unit serial number must be restored when the system board is replaced. |
|
To restore the system unit serial number, select the option ¿Set system identification— on the maintenance diskette. The flash ROM on the system board contains the vital product data (VPD), that is, the system unit serial number, system board system number, and other computer-unique data. |
|
Step |
Length (Quantity) |
Torque |
|

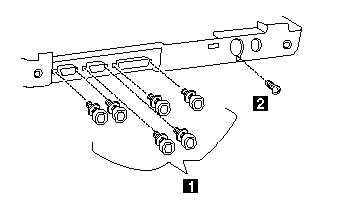

1 |
4 mm, Hexhead (6) |
4.0 kgcm |
|
2 |
3 mm (1) |
2.0 kgcm |
|
Note: |
Do not use the screw that you have removed. |
|
Use a new screw and tighten the screw to the torque specification shown. |
|
Step |
Length (Quantity) |
Torque |
|

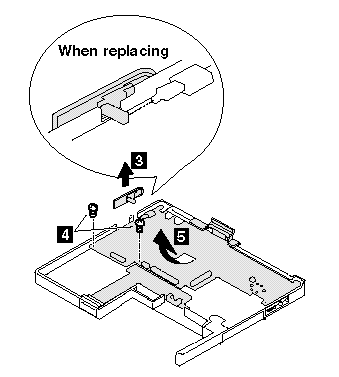

4 |
4 mm, nylon coating (2) |
4.0 kgcm |
|
Note: |
Do not use the screw that you have removed. |
|
Use a new screw and tighten the screw to the torque specification shown. |
|
