Parts Information |
Document ID: GSMH-3BVDNG |
|
This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose. |
TP 340 - Option Parts List
Applicable to: World-Wide
Option Parts List:
Notes:
1. When you replace the AC Adapter witha new one, use the one for the country you are in even if the system is from a different country.
2. The warranty for the system unit does not apply to all options.
|
Basic IC DRAM Card (no parity) 8MB |
84G5725 |
|
Basic IC DRAM Card (no parity) 4MB |
84G5724 |
|
Basic IC DRAM Card (no parity) 16MB |
84G5726 |
|
Keyboard/Mouse Cable |
54G0444 |
|
Microphone |
66G7871 |
|
PS/2 Miniature Mouse |
95F5723 |
Numeric Keypad
|
Belgian |
95F5741 |
|
Canadian French |
95F5466 |
|
Danish |
95F5467 |
|
Dutch |
95F5467 |
|
French |
95F6313 |
|
German |
95F6314 |
|
Greek |
95F5467 |
|
Hebrew |
95F5741 |
|
Icelandic |
95F5467 |
|
Italian |
95F6316 |
|
Japanese |
79F6401 |
|
Norwegian |
95F5467 |
|
Spanish |
95F6315 |
|
Swedish/Finnish |
95F5468 |
|
Swiss/French |
95F5711 |
|
Swiss/German |
95F5715 |
|
Turkish |
95F5467 |
|
U.K. English |
95F5741 |
|
U.S. English |
95F5741 |
Tools:
|
Tri-Connector Wrap Plug |
72X8546 |
|
PC Test Card |
35G4703 |
|
Audio Wrap Cable |
66G5180 |
|
Screwdriver Kit |
95F3598 |
Warning:

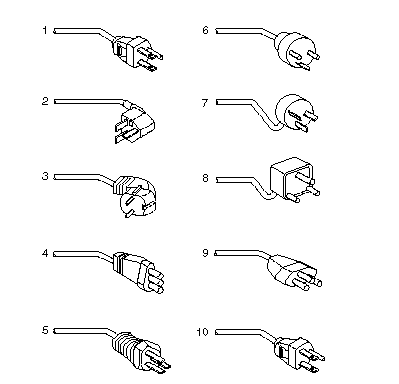

Use only the power cord certified for your country.
|
30/40W |
35W | ||
|
1 |
Colombia, U.S., Venezuela |
13F9959 |
25H2207 |
|
Japan, 2-pin |
6454377 |
85G6665 | |
|
Japan, 3-pin |
65F0031 | ||
|
2 |
Hong Kong, Singapore, U.K. |
14F0033 |
25H2215 |
|
3 |
France, Germany, Spain |
13F9979 |
25H2209 |
|
4 |
Italy |
14F0069 |
25H2223 |
|
5 |
Australia, New Zealand |
13F9940 |
25H2205 |
|
6 |
Denmark |
13F9997 |
25H2211 |
|
7 |
Israel |
14F0087 |
25H2225 |
|
8 |
Bangladesh, Pakistan, Sri Lanka, South Africa |
14F0015 |
25H2213 |
|
9 |
Switzerland |
14F0051 |
25H2221 |
|
10 |
Thailand |
1838574 |
25H2219 |
Note:
The 30/40W cord is 6 feet long; the 35W cord is 6 inches.
|
