Parts Information |
Document ID: LWIK-3SUL3E |

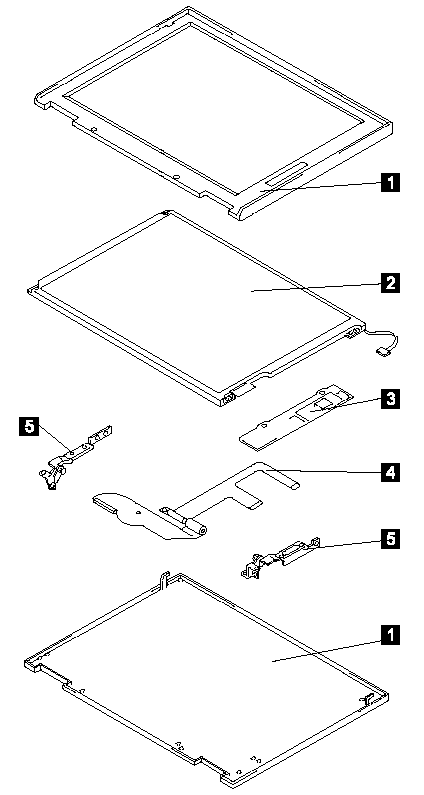

TP 600 - TFT LCD FRU Parts List (12.1")
Applicable to: World-Wide
LCD FRU (TFT) - 12.1-Inch TFT
|
Index |
System Unit | |
|
1 |
Cover Set |
05K5255 |
|
2 |
LCD Panel |
05K9335 |
|
3 |
Inverter Card |
10L0931 |
|
4 |
LCD Cables |
05K2655 |
|
5 |
Hinges |
05K5257 |
|
Search Keywords |
| |
|
Document Category |
Hardware Maintenance Information | |
|
Date Created |
23-03-98 | |
|
Last Updated |
19-01-99 | |
|
Revision Date |
19-01-2000 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 600 | |
|
Machine Type |
2645, 2646 | |
|
Model |
Various | |
|
