Service Hints & Tips

Document ID: GSMH-3E7M3S

PC Server 330 - General checkout

Applicable to: World-Wide

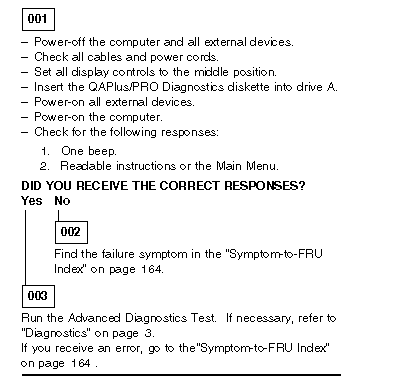

General Checkout:
This general checkout procedure is for computers that are supported by the QAPlus/PRO Diagnostics test. Diagnostic error messages appear when a test program finds a problem with a hardware option. For the test programs to properly determine if a test Passed, Failed , or Aborted , the test programs check the error-return code at test completion. (See 'Return Codes—.)

General error messages appear if a problem or conflict is found by an application program, the operating system, or both. For an explanation of these messages, refer to the information supplied with that software package.

Notes: 1. If multiple error codes are displayed, diagnose the first error code displayed. 2. If the computer reports a POST error, go to 'Symptom-to-FRU Index—. 3. If the computer hangs and no error is displayed, go to 'Undetermined Problems—. 4. If a device cannot be selected from the Module Test menu, that device might be defective.

	Search Keywords
	Hint Category	Diagnostics, Hardware Maintenance Information
	Date Created	11-02-97
	Last Updated	19-11-98
	Revision Date	05-11-99
	Brand	IBM PC Server
	Product Family	PC Server 330
	Machine Type	8640
	Model
	TypeModel
	Retain Tip (if applicable)	N/A
