PC Server 325 - Operator panel status indicators locations

Applicable to: World-Wide

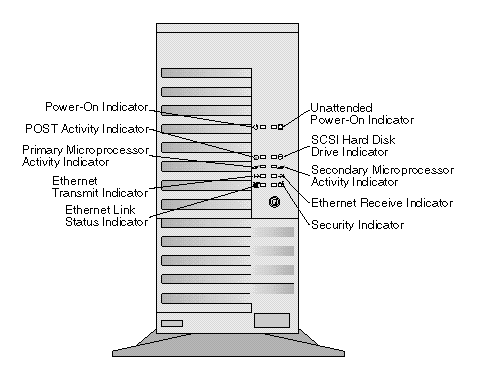

Operator Panel Status Indicators:

Notes:
1. During the power-on self test (POST), some of the LEDs come on briefly.
2. The amber LEDs might blink to show activity, and remain on to indicate that a problem condition exists.

Power-On Light:

This green LED lights when you power-on the server by pressing the power switch, and when the server powers on in unattended mode.

Unattended Power-On Light:

This green LED lights when the server powers on in unattended mode.

POST Activity Indicator:

This amber LED lights while the power-on self test (POST) and the configuration utility programs are running. If this light remains illuminated, either a POST error has occurred, or the system microprocessor has stopped.

SCSI Hard Drive In-Use Light:

This amber LED lights when the server is accessing a SCSI device. If this light remains illuminated, this might indicate that either the SCSI bus or the system microprocessor has stopped.

Primary Microprocessor In-Use Light:

This amber LED blinks to indicate the activity of the primary microprocessor; it also comes on during POST.

Optional (Secondary) Microprocessor In-Use Light:

When an optional microprocessor is installed, this amber LED blinks to show the activity of the optional microprocessor; it also lights during POST. When installed, this optional microprocessor
becomes the boot, or startup processor.

Ethernet Transmit Light:

This amber LED shows transmit activity on the network.

Ethernet Receive Light:

This amber LED shows receive activity on the network.

Ethernet Link Status Light:

This green LED shows an active link connection on the 10BASE-T interface.

Security Light:

When tamper-detection software is installed and enabled, this amber LED shows that a security hardware or software error occurred.
