Aptiva - 2144-S15 Parts - System unit interior

49.261 bytes

Parts Information

Document ID: DETR-44GKLW

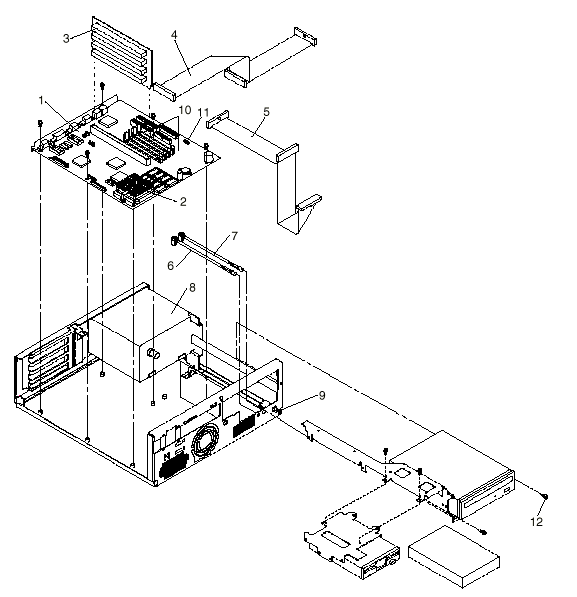

Aptiva - 2144-S15 Parts - System unit interior

Applicable to: Canada, United States

Asmû Index

Part Number

Units

Description

2-1

System Board (Type G-1)

Note:
See the Appendix, "Model/Monitor
Configurations and FRU Part
Numbers" on page A-1 of the HMM for model specifications.

All system board FRUs are shipped
without processor, cache memory modules, video DRAM modules, or
SIMMs. When upgrading or replacing
a system board, any non-failing
processor, cache memory modules,
video DRAM modules, and/or SIMMs
must be removed from the original
system board and reinstalled on the
FRU system board.

-1

11H9623

1

System Board (1MB Video DRAM, 9
cache sockets, 4 SIMM sockets,
VESA Local Bus connector)

-2

06H7589

1

P54C-75MHz Processor

-3

10H2830

1

Riser Card (4-Connector AT)

-4

93F2394

1

Hard Disk Drive Ribbon Cable

-5

93F2395

1

Diskette Drive Ribbon Cable

-6

93F2388

1

Indicator LED and Cable, Hard Drive

-7

93F2389

1

Indicator LED and Cable, Power

-NS

04H5773

1

Modem Data/FAX/Voice Adapter Card (14400 bps)

-NS

04H5934

1

Modem Wake Up on Ring cable

-NS

10H3199

1

FAX/voice modem sound cable

-8

06H3861

1

Power Supply (145-W
Switch-selectable LV/HV)

-9

60G2258

1

Power Switch to System Board Cable
Assembly

-10

60G2900

1

SIMM, 4MB, Non-parity

-10

92G7245

1

SIMM, 8MB, Non-parity

-10

92G7247

1

SIMM, 16MB, Non-parity

-NS

06H7586

1

Cache Memory kit, 256KB
(4 cache modules, 1 cache tag
module)

-NS

92G7432

1

Video Memory Module, 512KB DRAM

-NS

93F0063

1

Lithium Battery (CR2032)

-11

93F0067

1

Jumper, 2 position (Packet of 4)

-12

93F0041

1

Packet (Mounting Screws)

Search Keywords

Document Category

Service Parts

Date Created

25-01-99

Last Updated

25-01-99

Revision Date

Brand

IBM Aptiva

Product Family

Aptiva

Machine Type

2144

Model

S15; 2R3

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes

Asmû Index	Part Number	Units	Description
2-1			System Board (Type G-1) Note: See the Appendix, "Model/Monitor Configurations and FRU Part Numbers" on page A-1 of the HMM for model specifications. All system board FRUs are shipped without processor, cache memory modules, video DRAM modules, or SIMMs. When upgrading or replacing a system board, any non-failing processor, cache memory modules, video DRAM modules, and/or SIMMs must be removed from the original system board and reinstalled on the FRU system board.
-1	11H9623	1	System Board (1MB Video DRAM, 9 cache sockets, 4 SIMM sockets, VESA Local Bus connector)
-2	06H7589	1	P54C-75MHz Processor
-3	10H2830	1	Riser Card (4-Connector AT)
-4	93F2394	1	Hard Disk Drive Ribbon Cable
-5	93F2395	1	Diskette Drive Ribbon Cable
-6	93F2388	1	Indicator LED and Cable, Hard Drive
-7	93F2389	1	Indicator LED and Cable, Power
-NS	04H5773	1	Modem Data/FAX/Voice Adapter Card (14400 bps)
-NS	04H5934	1	Modem Wake Up on Ring cable
-NS	10H3199	1	FAX/voice modem sound cable
-8	06H3861	1	Power Supply (145-W Switch-selectable LV/HV)
-9	60G2258	1	Power Switch to System Board Cable Assembly
-10	60G2900	1	SIMM, 4MB, Non-parity
-10	92G7245	1	SIMM, 8MB, Non-parity
-10	92G7247	1	SIMM, 16MB, Non-parity
-NS	06H7586	1	Cache Memory kit, 256KB (4 cache modules, 1 cache tag module)
-NS	92G7432	1	Video Memory Module, 512KB DRAM
-NS	93F0063	1	Lithium Battery (CR2032)
-11	93F0067	1	Jumper, 2 position (Packet of 4)
-12	93F0041	1	Packet (Mounting Screws)
