Netfinity 5500 M20 - System Parts Listing

79.528 bytes

Parts Information

Document ID: DDSE-469M3D

Netfinity 5500 M20 - System Parts Listing

Applicable to: World-Wide

Source: Hardware Maintenance Manual

Parts listing (Type 8662)

System

Index

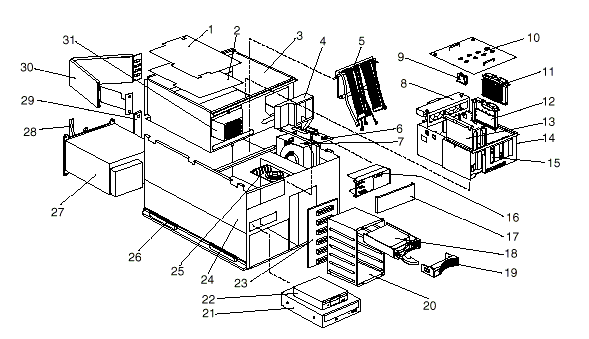

System (Netfinity 5500 M20 - Type 8662) Models 31Y, 3RY, 41Y, 4RY

FRU No.

1

System Board Shield

03K9054

2

System Board without Memory and Processor Board

28L0714

3

Shuttle with Bracket

01K6998

4

Air Diffuser

28L0630

5

Hot Swap Power Backplane Card with 5 Power Cables

36L9540

6

Fan #3 - Long Blower Fan Assembly with Bracket and Vane

01K6990

7

Fan #2 - Short Blower Fan Assembly with Bracket

01K6988

8

Fan #4 - Fan Assembly 92 mm with Connector and Bracket
System Board to Fans 1, 2, and 3 Power Cable
Fan 4 Power Cable

28L0635
03K9168
36L9552

9

Voltage Regulator Module

20L1010

10

Processor Support Tray Cover
See Processor Support Tray Kit below

36L9541

11

450/100 MHz Pentium II Xeon Processor with 512 KB L2 Cache
450/100 MHz Pentium II Processor with 1 MB L2 Cache
500/100 MHz Processor with 512 KB L2 Cache
500/100 MHz Processor with 1 MB L2 Cache (Option)

28L4557
28L4558
28L4441
28L4442

12

Processor Terminator Card

94H0598

13

Memory Board

01K7231

14

Processor Support Tray
See Processor Support Tray Kit below

36L9541

15

4 GB Processor Board without microprocessor

01K7230

16

Front LED Panel and Bracket

28L0691

17

Information LED Panel Cover Lens

28L0643

18

Hard Disk Drive

N/A

19

Hard Disk Drive Bezel (Black)

12J3072

20

DASD 6-Drive Cage Assembly

01K6987

21

Sony 32x CD-ROM Assembly with CD-ROM Drive, 2 Brackets, and 4 Screws
LG 32x CD-ROM Drive Only
CD-ROM Signal Cable (IDE)

28L1637
28L1643
03K9338

22

1.44MB Diskette Drive, Black
Diskette Holder Bracket
Diskette Drive Signal Cable

76H4091
12J3065
03K9340

23

DASD Backplane Board

76H6880

24

Base Frame Assembly

01K6991

25

Interior (Diagnostic) LED and Speaker Assembly

28L0692

26

Side Cover Retention Bracket (Models 31Y, 41Y)

12J7040

27

500 Watt Hot Swap PFC Power Supply Assembly with Bracket

01K9879

28

Power Supply Bracket

36L9520

29

AC Input Blank

28L0633

30

Cable Management Arm (Models 3RY, 4RY)
Cable Management Arm Bracket (Models 3RY, 4RY)

12J3088
12J3089

31

Fan #1 - Fan Assembly 92 mm with Connector and Bracket

01K6999

32

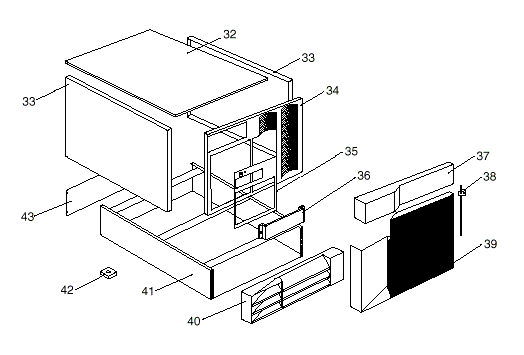

Top Cover

12J3063

33

Side Access Cover (Models 31Y, 41Y)

03K8776

34

Front Bezel without Door Assembly

01K6997

35

Media and Switch Trim Panel

03K8773

36

5.25-Inch Blank Bezel

12J3073

37

Front Bezel Cap (Models 31Y, 41Y)

12J7041

38

Keylock with Keys and Pawl (Models 31Y, 41Y)
Keylock Linkage (Models 31Y, 41Y)

01K6641
03K8777

39

DASD Door (Models 31Y, 41Y)

03K8778

40

3-U Front Bezel Assembly with Lock and Keys (Models 31Y, 41Y)

03K8798

41

3-U Pedestal Frame (Models 31Y, 41Y)

03K8797

42

Foot Pads, 4 each (Models 31Y, 41Y)

03K8800

43

3-U Blank Panel (Models 31Y, 41Y)

03K8799

128MB ECC 3.3v REG SDRAM DIMM (Option)

28L1015

256MB ECC 3.3v REG DIMM

01K7391

512MB ECC 3.3v REG SDRAM DIMM (Option)

28L1016

Air Baffle

36L9549

Door Hinge (Models 31Y, 41Y)

01K6637

Extension Cable (for J32)

36L9564

Keyboard with Cable (Models 31Y, 41Y)
See "Keyboards".

Left and Right EIA Mounting Flange (Models 3RY, 4RY)

01K6981

Lift Handle (Models 3RY, 4RY)

03K9069

Media Bracket

12J5681

Microprocessor Bracket (Models 31Y, 3RY, 41Y, 4RY)
See Processor Support Tray Kit below

36L9541

Miscellaneous Parts Kit 1

32x5/16 Screws (4 each)
M3.5x8 Plastite Screws (2 each)
M3x5 CD/Bracket Screws (8 each)
M3.5x7 Processor Board Screws, (15 each)
6/32x3/16 Screws (8 each)
3.9ID Nylon Washers (2 each)
EMC Springs (24 each)
Lock Hole Plug (1 each)
Cable Tie (1 each)
Fan Grommets (4 each)

12J3079

Miscellaneous Parts Kit 2 (Models 31Y, 3RY, 41Y, 4RY)

EMI I/O Gasket (1 each)
EMI PCI/ISA I/O Gasket (1 each)

03K8782

Miscellaneous Hot-Swap Parts Kit 3 (Models 31Y, 3RY, 41Y, 4RY)

M3x5 Handle Screws (5 each)
PCI Card/Housing to Shuttle Screws (2 each)
Insulator with Light Pipes (5 each)
Hot Swap PCI Card Clamps (4 each)
Hot Swap PCI Card Guides (5 each)
Hot Swap PCI I/O Card Guides (6 each)
ISA I/O Card Guide (1 each)
PCI Filler Plate Bracket (4 each)
Hot-Swap Retention Handles (4 each)
Switch Card Mounting to Chassis Housing (1 each)

28L4526

Miscellaneous Rack Kit 4 (Models 3RY, 4RY)

M6x16 Screws, Slide-Bracket to Rack (16 each)
M3.5x7 (EIA Flanges to Chassis Screws) (6 each)
M4x8 Screws, Slides to Chassis (8 each)
M6 Nut Clips, Slide-Bracket to Rack (6 each)
M6 Nuts, Flange Arm to Bracket (2 each)

12J3090

Mouse (Models 31Y, 41Y)

76H0889

PCI Hot-Swap Latch Card

03K8982

Power Supply Filler Panel (Models 31Y, 41Y)

01K6996

Power Cord See "Power cords".

Power Switch (Button) Assembly with Bracket

01K7003

Processor Support Tray Kit

36L9541

Rack Slide-Bracket Assembly (Models 3RY, 4RY)

03K8775

RS-485 Internal Cable

03K9321

SCSI to Media Bay Cable (3X)

12J3711

SCSI to External Port Cable with Bracket

36L9537

SCSI to Hot-Swap Backplane Cable

12J3274

Short Insulator (Models 31Y, 3RY, 41Y, 4RY)

36L9548

System Battery (Models 31Y, 3RY, 41Y, 4RY)

33F8354

System Service Label (Models 31Y, 3RY, 41Y, 4RY)

28L0694
