Notebook N45SL - Parts Listing

Applicable to: World-Wide

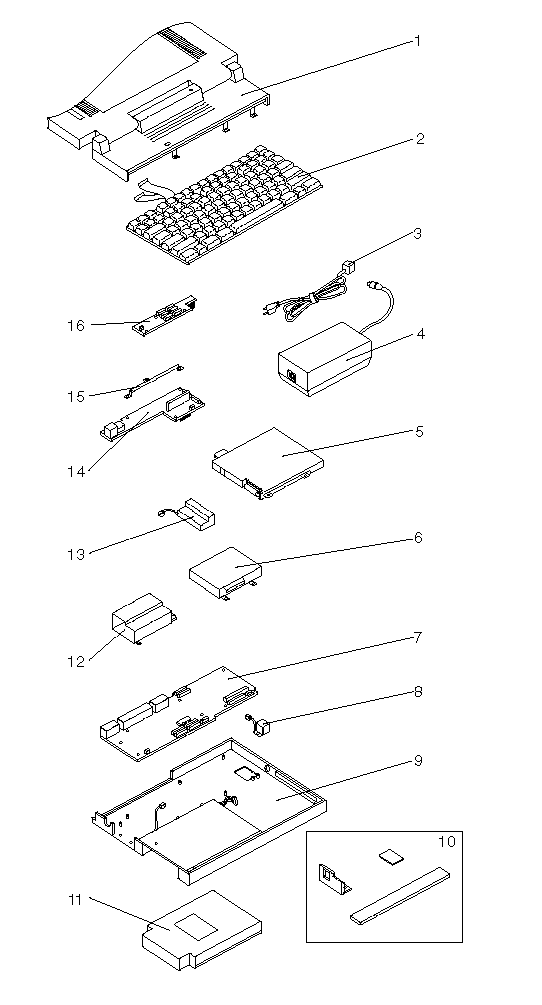

Parts Listing:

System Unit:

1

Top Cabinet Assembly

92F8858

French

92F8839

German

92F8837

Italian

92F8845

Spanish

92F8838

U.K. English

92F8836

U.S. English

92F8835

3

Power Cord, US

6952301

3

Power Cord, UK

14F0033

3

Power Cord, Switzerland

14F0051

3

Power Cord, Europe

13F9979

7

System Board

92F8827

8

PS/2 Mouse Board

92F88339

Bottom Cover Assembly

92F8819

10

Parts Package, Cover
(Left/right LCD hinge covers, memory expansion cover, memory cover, modem door door, coprocessor door, rear I/O cover,
modem cover plug, modem door, coprocessor door, black lid switch knob)

92F8825

Battery Pack

92F8840

13

Backup Battery

92F8834

Battery Contact Assembly

92F8841

14

DC to DC PCB Assembly

92F8820

Speaker

33G9475

Parts Package, Screws
(3-2.5x4;
3-2.5x12;
2-2.6x6 (tap);
3-2.6x6;
5-2x6 (tap);
3-2.5x4;
11-2.5x6)

92F8824


DASD:

5

Diskette Drive

92F8821

6

80MB Hard Disk Drive

92F8822

6

120MB Hard Disk Drive

33G6366



Options and Adapters:

4

AC Adapter

92F8832

Modem, 2400 BPS, US

92F8846

12

Modem Housing Assembly

92F8826

Fax/Modem,US

92F8896

Fax/Modem, Worldwide

92F6293

Fax/Modem DAA Adapter, US

92F8847

Fax/Modem DAA Adapter, UK

92F8848

Fax/Modem DAA Adapter, Danish

92F8849

Fax/Modem DAA Adapter, French

92F8850

Fax/Modem DAA Adapter, German

92F8851

Fax/Modem DAA Adapter, Italian

92F8852

Fax/Modem DAA Adapter, Norwegian

92F8853

Fax/Modem DAA Adapter, Spanish

92F8854

Fax/Modem DAA Adapter, Swedish

92F8855

Fax/Modem DAA Adapter, Swiss

92F8856

16

Expansion Memory Module

92F8823

15

Memory Module Support (part of P/N 92F8823)
