Parts Information

Document ID: MCGN-3RSRRP

Netfinity 3500 - System Board

Applicable to: World-Wide

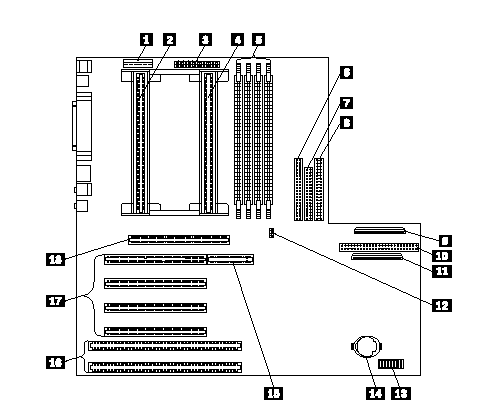

1	5 V auxiliary power connector
2	Primary microprocessor socket
3	Power switch connector
4	Secondary microprocessor socket
5	DIMM sockets (memory connectors)
6	Secondary IDE connector
7	Diskette drive connector
8	Primary IDE connector
9	Channel A SCSI connector (68 pin)
10	Channel B SCSI connector (50 pin)
11	Channel B SCSI connector (68 pin)
12	Clear CMOS Request (password) jumper (J7E1)
13	Configuration switches
14	Battery
15	RAIDport connector
16	ISA slot connectors
17	PCI slot connectors
18	AGP slot connector

Notes The RAIDport connector is not supported. An illustration of the system board and additional information are provided on a label inside the server.
