Service Hints & Tips |
Document ID: YAST-3JTHLJ |
TP 310,315 - FRU Removal and Replacement Notes
Applicable to: World-Wide

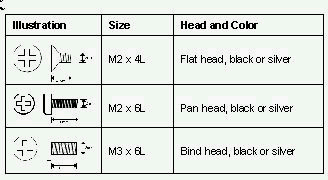

Screw Type Example Explanation:
Some screws have nylock paste (on the grooves) for better friction and increased stability. Some screws have bracket
supports.

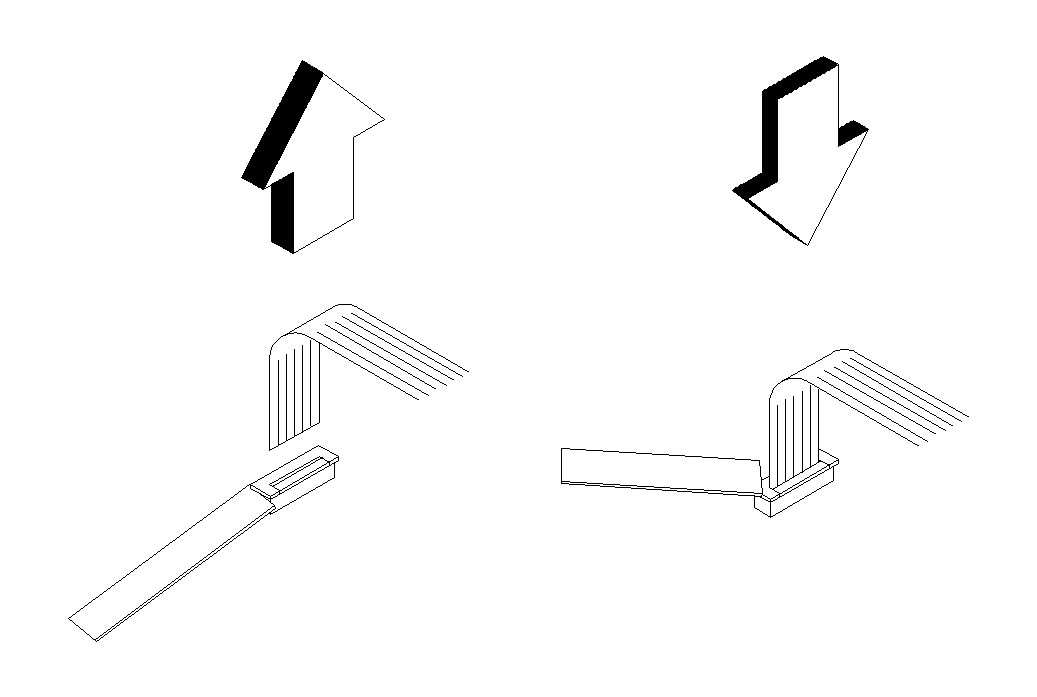

FPC Cable Connector Type:
Unplugging the Cable:
To unplug the cable, first unlock the connector by pulling up the two clasps on both sides of the connector with a plastic tool. Then carefully pull out the cable from the connector.
Plugging the Cable:
To plug the cable back, first make sure that the connector is unlocked, then plug the cable into the connector. With a plastic tool, press the two clasps on both sides of the connector to secure the cable in place.
|
