Service Hints & Tips

Document ID: BMOE-425PMX

TP 1400 - Audio PCB Removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

• Battery Assembly
• Keyboard
• Hard Disk Drive and HDD Heatsink
• CPU Heatsink
• LCD Assembly
• Upper Cover (Keyboard Bezel)

Step	Size (Quantity)	Head & Color	Torque	Memo
1	M2.5 x 6L (2)	Bind head, black	3.2 kgf-cm	w/ nylok paste

Note: Make sure you use the correct screw for replacement.

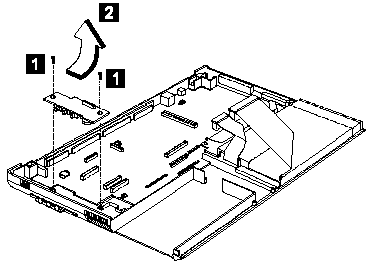

Attention: When removing the audio I/O board, pull it up at an angle. It cannot removed when pulled straight up.
