Parts Information

Document ID: DDSE-469LWW

Netfinity 3500 - System Parts Listing

Applicable to: World-Wide

System

Index

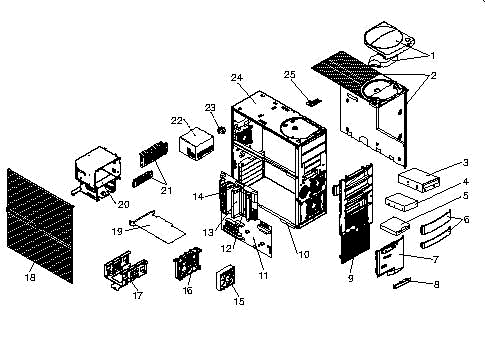

System (Type 8644)

FRU No.

1

Handle/Cap Assembly (Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

02K2865

2

Top/Side Cover Assembly (Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

01K1637

3

24X CD-ROM Drive (Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)
For CD-ROM bezel order Miscellaneous Optional Bezels

12J3525
12J5551

3

24X CD-ROM Drive (Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)
For CD-ROM bezel order Miscellaneous Optional Bezels

12J3527
12J5551

4

4.33 GB Hard Disk Drive, Slim
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

00K7909

4

4.33 GB Hard Disk Drive, Slim
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

76H4616

4

4.51 GB Hard Disk Drive, Slim
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

00K7929

4

4.51 GB Hard Disk Drive, Slim
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

76H2697

4

9.1 GB Hard Disk Drive, Half-high
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

76H2698

5

1.44 MB Diskette Drive (Black)
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

75H9550

6

Blank Louver Bezels 3.5-Inch and 5.25-Inch
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

01K1888

7

3.5-Inch Bezel Assembly
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

12J5549

8

Model Plate
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

03K9569

9

Front Bezel
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

12J5548

10

Foot, Qty. 4
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X

12J4506

11

System Board without Memory, Processor, and Cache

08L0606

12

32 MB ECC 3.3v Memory DIMM
(Models 10U, 10X, 20U, 20X, 21U, 21X)

01K1112

12

32 MB ECC 3.3v Memory DIMM
(Models 10U, 10X, 20U, 20X, 21U, 21X)

01K1125

12

64 MB ECC 3.3v Memory DIMM
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

01K1113

12

64 MB ECC 3.3v Memory DIMM
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

01K1126

12

128 MB ECC 3.3v Memory DIMM
(Models 10U, 10X, 20U, 20X, 21U, 21X)

01K1114

12

128 MB ECC 3.3v Memory DIMM
(Models 10U, 10X, 20U, 20X, 21U, 21X)

01K1127

13

Terminator Card
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

36L9420
( replaces 12J2701)

14

233MHz/512K Processor Card
(Models 10U, 10X)

12J2700

14

266MHz/512K Processor Card
(Models 20U, 20X, 21U, 21X)

12J2703

14

333MHz/512 Processor Card
(Models 30U, 30X)

01K4327

15

92mm Fan Assembly
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

02K2861

16

Speaker with Cable
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

06H9417

17

3.5-Inch Hard Disk Drive Bracket
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

12J4516

18

Side Access Cover Assembly
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

12J5546

19

Video Card
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

01K2018

20

3.5/5.25-Inch DASD Bracket
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

12J4501

21

EMC Kit
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

12J4508

22

330 Watt Power Supply
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

01K9866

23

Keylock Assembly
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

12J5102

24

Chassis Assembly
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

12J4515

25

Power Switch/LED Cable Assembly
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

12J4510

Air Baffle
(Models 10U, 10X, 20U, 20X, 21U, 21X)

02K2864

C2 Switch/Cable Assembly
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

01K1495

Cable - CD-ROM
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

75H9219

Cable - Diskette Drive (1X)
(Models 10U, 10X, 20U, 20X, 21U, 21X 30U, 30X)

76H4228

Cable - IDE, Secondary
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

01K1475

Cable - SCSI (4X)
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

01K1497

Cable - SCSI Internal/External (2X)
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

01K1499

Cable - Wake On LAN
(Models 10U, 10X, 20U, 20X, 21U, 21X)

76H7345

Keyboard
(Models 10U, 10X, 20U, 20X, 21U, 21X)
See "Keyboards" .

Miscellaneous Hardware Kit
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

12J4503

Miscellaneous Optional Bezels
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)
- CD-ROM Bezel (1 each)
- ZIP Drive Bezel (1 each)

12J5551

Miscellaneous Hardware Kit
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)
- Rubber Mount Grommet 01K1649 4 each
- M4X12 Hex Head Screw 12J6340 2 each

10L5600

Miscellaneous Screw Kit
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

93F0041

Mouse
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

76H6620

Power Cord
(Models 10U, 10X, 20U, 20X, 21U, 21X)
See "Power Cords".

Power Switch Cover
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

03K9657

System Board EMC Shield
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

01K1855

System Board Retainer Support Kit
(Models 10U, 10X, 20U, 20X, 21U, 21X, 30U, 30X)

03K9570
