Service Hints & Tips |
Document ID: RMIE-389D8C |
|
This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose. |
TP 560 - Sticking keys
Applicable to: World-Wide
Abstract :
2640 WITH STICKING KEYS.
When servicing a 2640 system replace the existing rubber sheet located beneath the keyboard, if it does not have rows of holes.
The following diagrams show an example of a sheet with no holes and a sheet with holes underneath it.

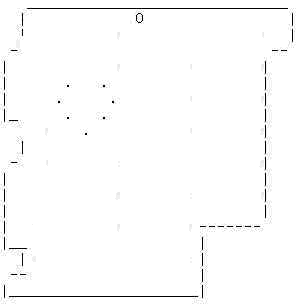

Sheet with no holes

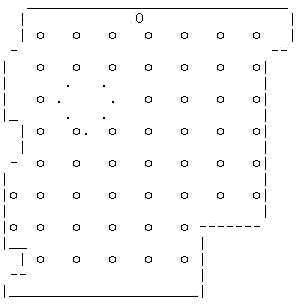

Sheet with holes
The part is referred to as a "KEYBOARD SHEET" FRU P/N46H4150 in the Mobile HMM volume 3 (MAY) 1996.
The holes stop the keys from sticking after being depressed by preventing a vacuum from forming between the bottom of the key and the rubber sheet.
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
05-08-96 | |
|
Last Updated |
30-03-98 | |
|
Revision Date |
13-03-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 560 | |
|
Machine Type |
2640 | |
|
Model |
Various | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
H133518 | |
|
