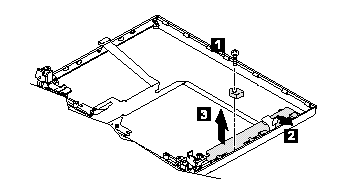

TP 560/E - 1140 Inverter Card
Applicable to: World-Wide
1140 Inverter Card
Battery Pack (1030)
Keyboard Unit (1050)
LCD Front Cover (1120)
LCD Panel (1130)
DSTN Panel
|
Step |
Length (Quantity) |
Torque |
|
1 |
M 2.5 x 6 mm (1) flathead |
3.0 kgcm |
|
Note: |
Do not use the screw that you have removed. |
|
Use a new screw and tighten the screw to the torque specification shown. |
TFT Panel
When replacing:
Connect the LCD connector to the inverter card by lining them up straight:
|
Step |
Length (Quantity) |
Torque |
|
2 |
M 2.0 x 3.7 mm (2) flathead |
3.0 kgcm |
|
Note: |
Do not use the screw that you have removed. |
|
Use a new screw and tighten the screw to the torque specification shown. |
|
