Service Hints & Tips |
Document ID: DDSE-3QNJH2 |
PCServer704 - EMI Shield Information
Applicable to: World-Wide
EMI Shield and Filler Panels (5.25-Inch Drive Bays)
Note
System EMI integrity and cooling are both protected by having drives installed in the bays or filler panels and EMI shields covering the bays. When drives are installed in the 5.25-inch drive bays, the filler panels and EMI shields should be saved in case the drives are later removed.

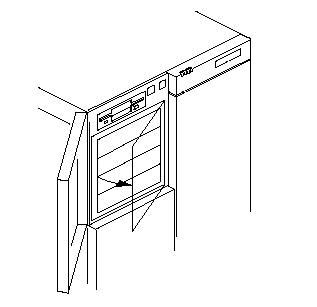

EMI Shield

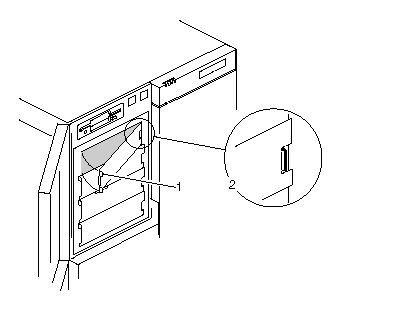

Filler Panel Frame

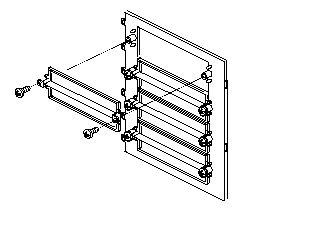

Filler Panel
|
