TP 380Z - LCD FRU parts list
Applicable to: World-Wide

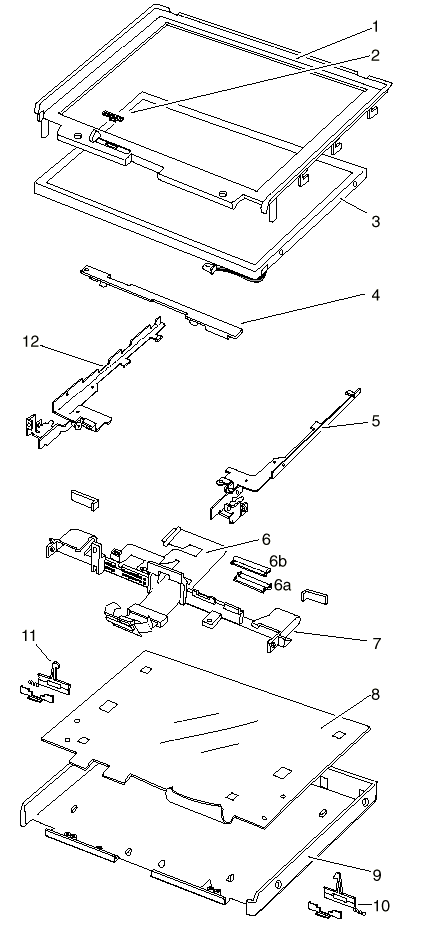

LCD FRU Diagram and Parts List
|
Ref. No. |
FRU Name |
FRU No. |
|
1 |
Front Cover (included in LCD Cover Kit) | |
|
2 |
Brightness Control Lever (included in LCD Misc. Parts Kit) | |
|
3 |
LCD Panel |
05K9377 |
|
4 |
LCD Inverter Card |
05K3472 |
|
5 |
Right Hinge (included Hinge Kit) | |
|
6 |
LCD Cable Assembly |
05K2765 |
|
a Cable Bush-Front | ||
|
b Cable Bush-Rear | ||
|
7 |
Hinge Holder (included in LCD Cover Kit) | |
|
8 |
Insulation Sheet (included in LCD Misc. Parts Kit) | |
|
9 |
LCD Cover (included in LCD Cover Kit) | |
|
10 |
Right Latch (included in LCD Misc. Parts Kit) | |
|
11 |
Left Latch (included in LCD Misc. Parts Kit) | |
|
12 |
Left Hinge (included in Hinge Kit) | |
|
NS |
LCD Cover Kit includes: |
05K5500 |
|
Front Cover (Ref.No.1) | ||
|
Hinge Holder (Ref.No.7) | ||
|
LCD Cover (Ref.No.9) | ||
|
Logo (Front, Rear) | ||
|
Hinge Cap | ||
|
Screw Cap | ||
|
NS |
Hinge Kit includes: |
05K5502 |
|
Right Hinge (Ref.No.6) | ||
|
Left Hinge (Ref.No.14) | ||
|
Screw Cap | ||
|
NS |
LCD Misc. Parts Kit includes: |
05K5503 |
|
LCD Cable Holder (Ref.No.2 ) | ||
|
Brightness Control Knob (Ref.No.2) | ||
|
Insulation Sheet (Ref.No.8) | ||
|
Right Latch, Spring, Holder (Ref.No.10) | ||
|
Left Latch, Spring, Holder (Ref.No.11) | ||
|
Screw Cap |
