Service Hints & Tips |
Document ID: GSMH-3GGETF |
Aptiva - 2161 Removals and replacements - Riser card
Applicable to: World-Wide
2045 - Riser Card
Adapter cards (2035) if applicable.
Riser card power connector.
Remove the riser card mounting screw (1 ).
Remove the riser card (2 ).

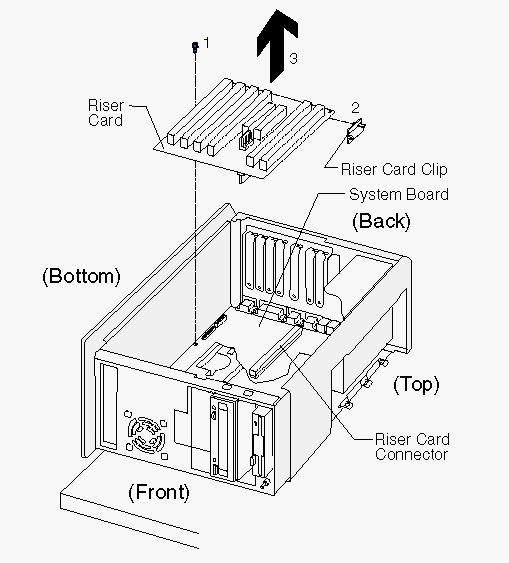

Figure 4-11. Riser Card
|
