Parts Information |
Document ID: GSMH-3ETENA |
TP 560/E - FRU LCD (DSTN) listing
Applicable to: World-Wide

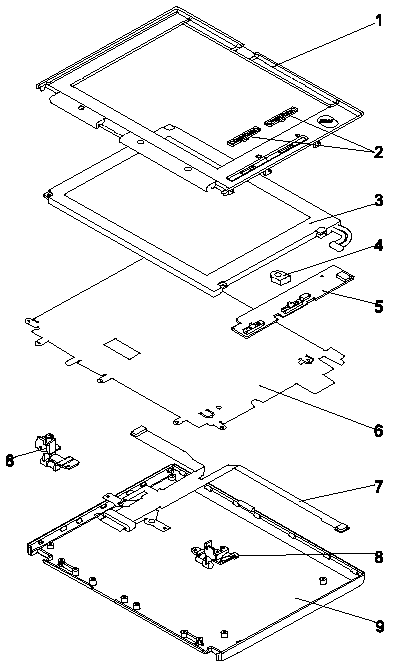

LCD FRU (DSTN):
|
Index |
System Unit | |
|
1 |
LCD Front Cover |
20H4265 |
|
2 |
Control Knob |
46H4158 |
|
3 |
LCD Panel (see LCD assembly) |
N/A |
|
4 |
Spacer |
46H4159 |
|
5 |
Inverter Card |
46H4152 |
|
6 |
Shield Sheet |
46H4157 |
|
7 |
LCD Cable |
46H4156 |
|
8 |
Hinges |
46H4155 |
|
9 |
LCD Rear Cover |
20H4263 |
|
Search Keywords |
| |
|
Document Category |
Service Parts | |
|
Date Created |
03-03-97 | |
|
Last Updated |
04-03-99 | |
|
Revision Date |
17-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 560, ThinkPad 560E | |
|
Machine Type |
2640 | |
|
Model |
Various | |
|
TypeModel |
| |
|
